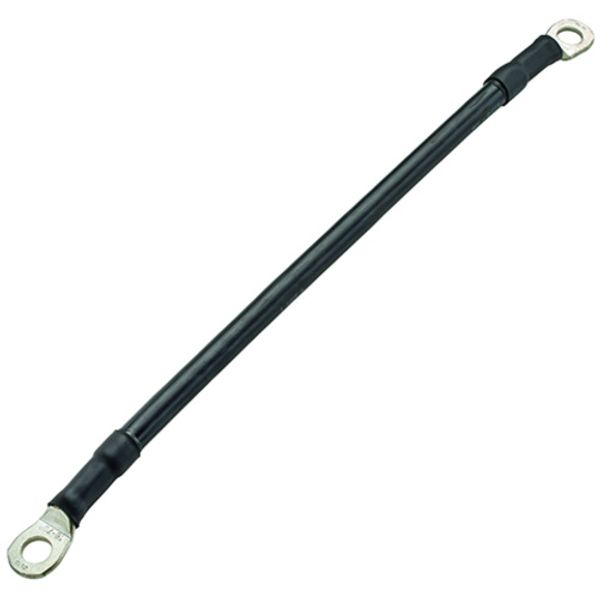

CuStAl earthing connector, cable lug on both ends D 17mm L 500mm

Order only

Price (excl. VAT):

50,26 €

This price is valid until 24.12.25

EAN: 4013364439627

MPN: 419290

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	CuStAl earthing connector, cable lug on both ends D 17mm L 500mm
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Connecting shaft	500 mm
Material connection lug	Other

Packing details

Packing level 1

4013364439627, 4013364439627

Downloads

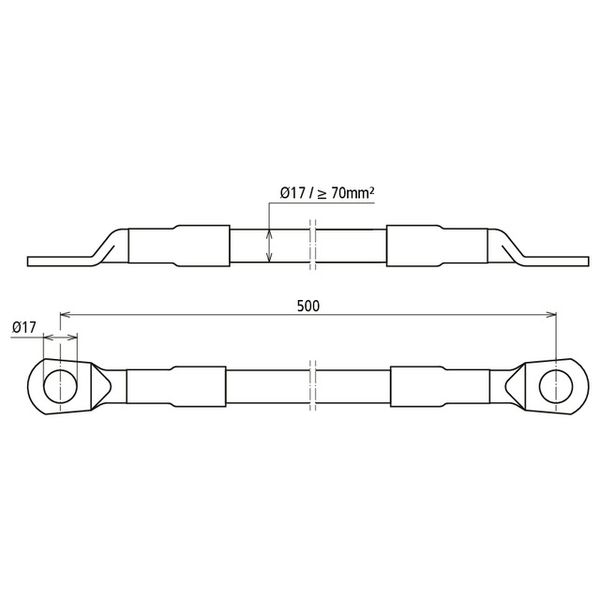

Product data sheet Dimensioned drawing

Description

Copper-steel-aluminium cable earthing connector as per the guideline of DB Netz AG Ril 997.0205A01, for earthing, return circuits and equipotential bonding in railway line applications. Consisting of two cable lugs with 17‑mm drill hole. The copper-steel-aluminium cable structure is therefore a preventive anti-theft measure. Designed for short-circuit currents > 25 kA.
