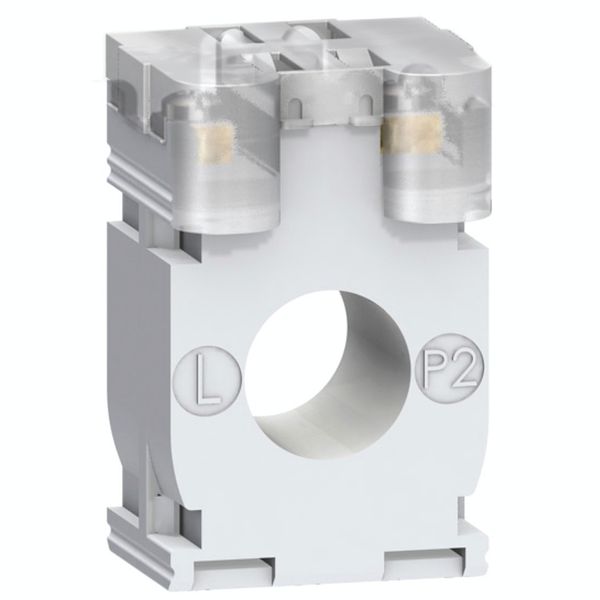

current transformer tropicalised DIN mount 75 5 for cables d. 21

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

34,89 €

This price is valid until 31.12.25

EAN: 3303431123421

MPN: METSECT5CC008

Package: 1

Box: 50

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	current transformer tropicalised DIN mount 75 5 for cables d. 21
Brand	Schneider Electric
Categories	Measurement Transformers
Country of origin	TN
Harmonized System Code	8504 3180 00
Model	Attachable current transformer
Primary rated current	75 A
Secondary rated apparent power	2.5 VA
Secondary rated current	5 A
Overcurrent limiting factor	FS 5
Accuracy class	1

Packing details

Packing level 1	3303431123421
Packing level 2	3303431123426

Other Technical data

Opening diameter	21 mm
Number of primary inputs	1
With copper rail	No
Snap mounting	No
With shock protection	No
Calibrated	No
Height opening	0 mm
Width opening	0 mm
Secondary connection	Screw connection

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Declaration DOC CE (Declaration of conformity CE) Technical manual Mounting instruction

Description

This current transformer, tropicalised for cable, has a line rated current of 75 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 21 mm. Burden and accuracy class as follows: class 1 maximum power: 1.5 VA, class 3 maximum power: 2.5 VA.
