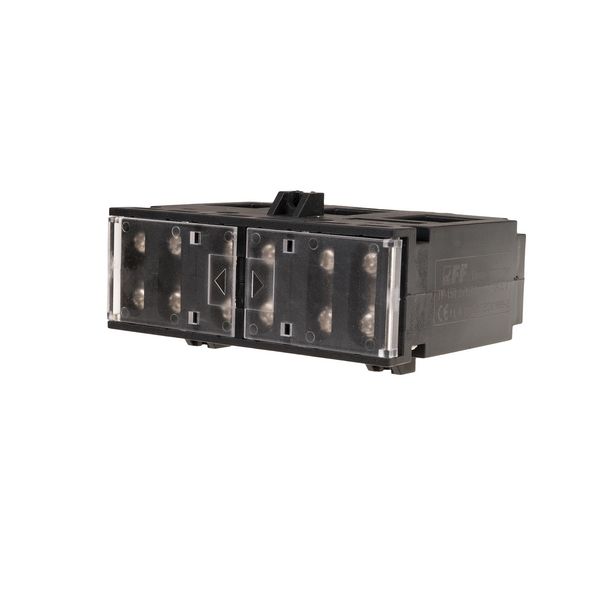

Current transformer - three-phase, rated voltage 720V AC, 150/5A; TP-150-5 image 1

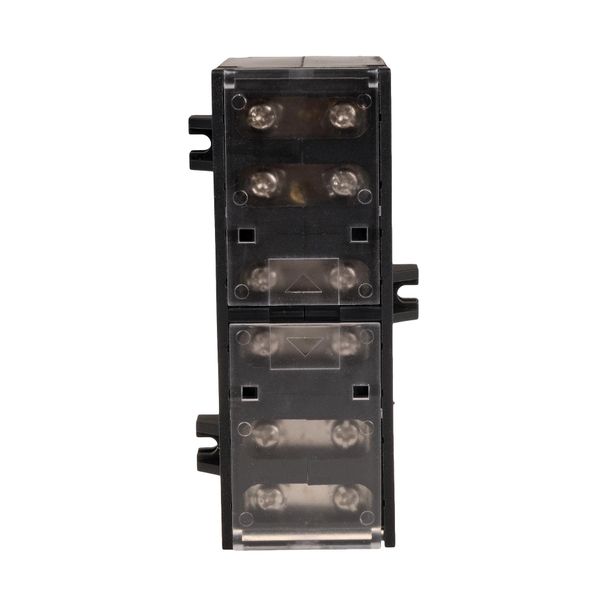

Current transformer - three-phase, rated voltage 720V AC, 150/5A; TP-150-5 image 2

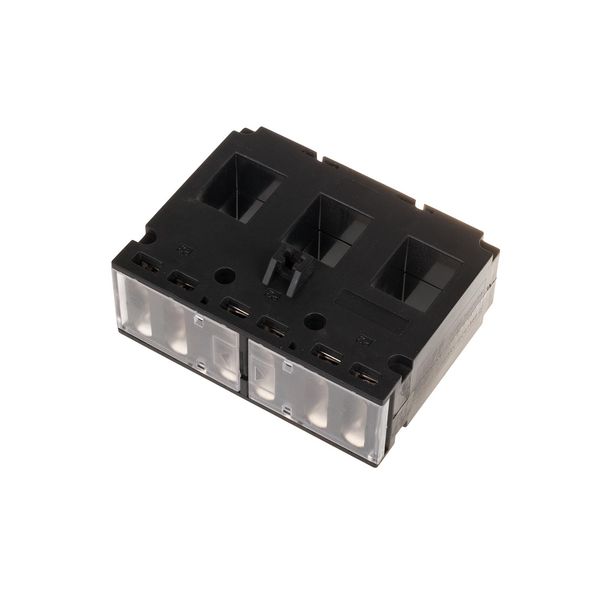

Current transformer - three-phase, rated voltage 720V AC, 150/5A; TP-150-5 image 3
Current transformer - three-phase, rated voltage 720V AC, 150/5A; TP-150-5 image 4
Current transformer - three-phase, rated voltage 720V AC, 150/5A; TP-150-5 thumbnail 1
Current transformer - three-phase, rated voltage 720V AC, 150/5A; TP-150-5 thumbnail 2
Current transformer - three-phase, rated voltage 720V AC, 150/5A; TP-150-5 thumbnail 3
Current transformer - three-phase, rated voltage 720V AC, 150/5A; TP-150-5 thumbnail 4
F&F

Current transformer - three-phase, rated voltage 720V AC, 150/5A; TP-150-5

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
59,34 €
This price is valid until 24.12.25
EAN: 5902431671901
MPN: TP-150
Package: 1
Estimate delivery time at our warehouse (approx.): 2-3 weeks

Technical Information

Item condition New
Manufacture name Current transformer - three-phase, rated voltage 720V AC, 150/5A; TP-150-5
Brand F&F
Categories Measurement Transformers
Country of origin PL
Harmonized System Code 8536 4190 00
Model Through-feed current converter
Primary rated current 150 A
Secondary rated apparent power 2.5 VA
Secondary rated current 5 A
Overcurrent limiting factor FS 5

Packing details

Packing level 1 5902431671901

Other Technical data

Number of primary inputs 1
With copper rail No
Snap mounting No
With shock protection Yes
Calibrated No
Secondary connection Screw connection

Downloads

Deep link REACH Declaration RoHS

Description

Trójfazowy. Przekładnia 150/5. Moc 2,5 VA. Przekładnik prądowy 3-fazowy (3 w 1) służy do pośrednich pomiarów prądów trójfazowych. Jego konstrukcja pozwala na montaż bezpośrednio na wyjściach rozłączników mocy (ABB seria Isomax, Merlin Gerlin seria NS i analogicznych) oszczędzając czas montażu i miejsce w rozdzielnicy.
