EATON

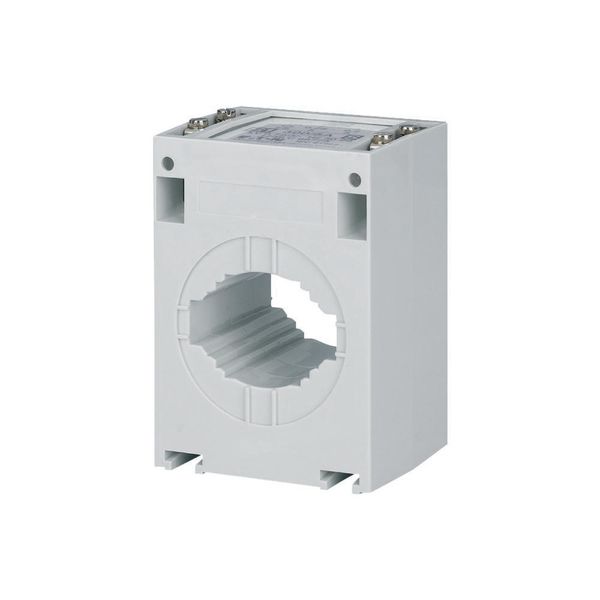

HF4B-400/1A Current transformer HF4B, 400A/1A

Order Only
Price (excl. VAT):
52,50 €
This price is valid until 24.12.25
EAN: 5703498701347
MPN: 741C2073
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name HF4B-400/1A Current transformer HF4B, 400A/1A
Brand EATON
Categories Measurement Transformers
Country of origin PL
Harmonized System Code 8504 3129 00
Model Through-feed current converter
Primary rated current 400 A
Secondary rated apparent power 7.5 VA
Secondary rated current 1 A
Overcurrent limiting factor FS 5
Accuracy class 3

Packing details

Packing level 1 5703498701347

Other Technical data

Opening diameter 28 mm
Number of primary inputs 1
With copper rail No
Snap mounting Yes
With shock protection No
Calibrated No
Height opening 28 mm
Width opening 40 mm
Secondary connection Screw connection

Description

Current transformer HF4B, Class 0.5, single phase, 400A/1A
