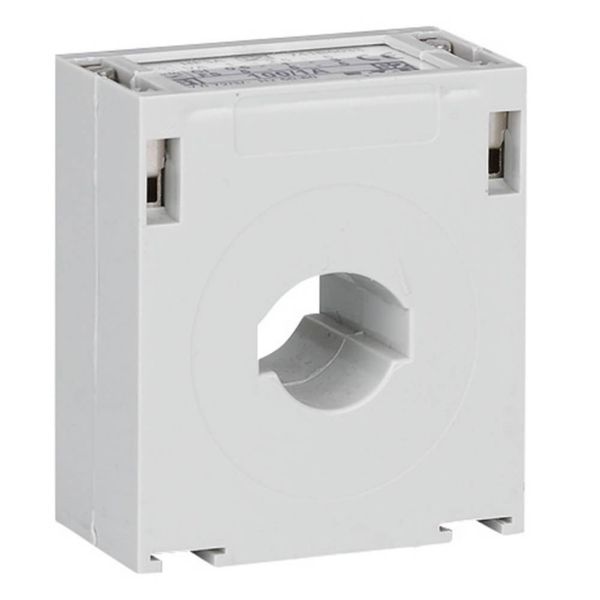

HF3A-80/5A Current transformer HF3A, 80A/5A
Order only
Price (excl. VAT):
38,52 €
EAN: 5703498700562
MPN: 741B0087
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | HF3A-80/5A Current transformer HF3A, 80A/5A |
| Brand | EATON |
| Categories |
Measurement Transformers
|
| Country of origin | PL |
| Harmonized System Code | 8504 3129 00 |
| Model | Through-feed current converter |
| Primary rated current | 80 A |
| Secondary rated apparent power | 2 VA |
| Secondary rated current | 5 A |
| Overcurrent limiting factor | FS 5 |
| Accuracy class | 3 |
Packing details
| Packing level 1 | 5703498700562 |
Other Technical data
| Opening diameter | 17 mm |
| Number of primary inputs | 1 |
| With copper rail | No |
| Snap mounting | Yes |
| With shock protection | No |
| Calibrated | No |
| Height opening | 17 mm |
| Width opening | 20 mm |
| Secondary connection | Screw connection |
Description
Current transformer HF3A, Class 1, single phase, 80A/5A
