Current Transformer for LT NH1-3 250/5A 3,75VA Class 1 image 1
Hager

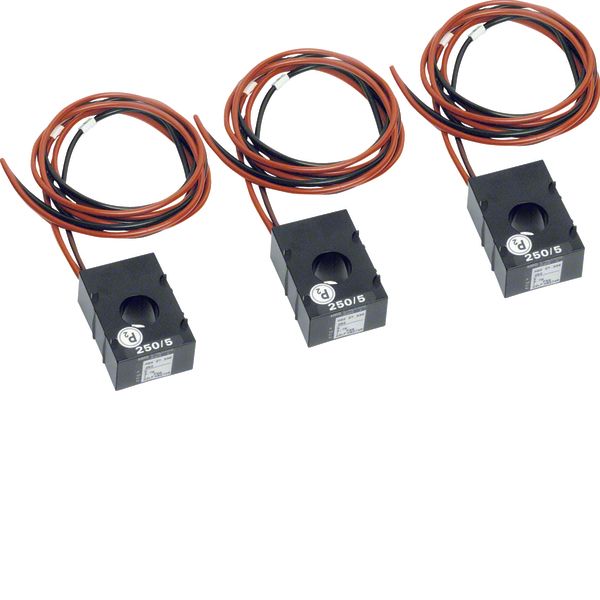

Current Transformer For LT NH1-3 250/5 A 3, 75VA Class 1

Order only
EAN: 3250614262579
MPN: LZ257
Package: 1
Price (excl. VAT)
115,52 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts

Technical Information

Item condition New
Manufacture name Current Transformer for LT NH1-3 250/5A 3,75VA Class 1
Brand Hager
Categories Measurement Transformers
Harmonized System Code 8504 3129 90
ETIM EC002048
Model Attachable current transformer
Primary rated current 250 A
Secondary rated apparent power 3.75 VA
Secondary rated current 5 A
Overcurrent limiting factor FS 5
Accuracy class 1

Packing details

Packing level 1 3250614262579
Packing level 2 3250614262579

Other Technical data

Opening diameter 21 mm
Number of primary inputs 1
With copper rail No
Snap mounting No
With shock protection Yes
Calibrated No
Height opening 12.5 mm
Width opening 30.5 mm
Secondary connection Screw connection

Downloads

Product data sheet
