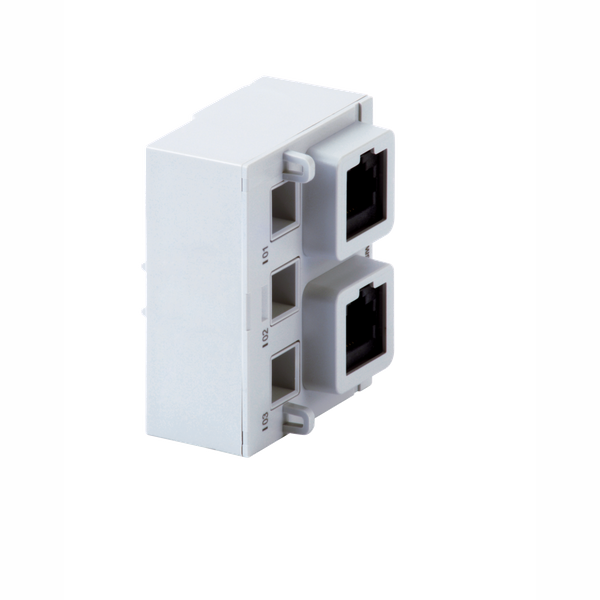

Current acquisition module DIRIS Digiware S-135, 3 current sensors, 63
Order only
Price (excl. VAT):
381,80 €
EAN: 3596033016271
MPN: 48290161
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Current acquisition module DIRIS Digiware S-135, 3 current sensors, 63 |
| Brand | Socomec |
| Categories |
DIN-Rail Measuring Devices
|
| Country of origin | FR |
| Harmonized System Code | 9030 3370 00 |
| Display | None |
| Accuracy class active energy according to IEC 62053-22 | Other |
Packing details
| Packing level 1 | 3596033016271 |
Other Technical data
| Width | 54 mm |
| Height | 28 mm |
| Depth | 42.5 mm |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | DC |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for other bus systems | No |
| Degree of protection (IP), front side | IP20 |
| Ethernet-connections | 0 |
| Ampere meter | Yes |
| Blind power meter | Yes |
| With rotational speed meter | No |
| Frequency meter | No |
| Pulse counter | No |
| Voltmeter | No |
| Effective power measurement device | Yes |
| Supporting protocol for PROFINET IO | No |
| Supply voltage DC | 0-24 V |
| Accuracy class reactive energy according to IEC 62053-23 | Other |
| Sampling frequency | 10000 Hz |
| Number of voltage measurement inputs | 0 |
| Number of current measurement inputs | 3 |
| Supporting protocol for IEC 61850 Ethernet | No |
| Supporting protocol for OPC UA PubSub | No |
| With audit logging (audit log) | No |
| With firmware signature | Yes |
| With logging of security events (security event log) | Yes |
| With Role Based Access Control (RBAC) | No |
| Web server with HTTPS transfer protocol | No |
| Remote display | No |
Downloads
Description
Current acquisition module DIRIS Digiware S-135, 3 current sensors, 63 A
