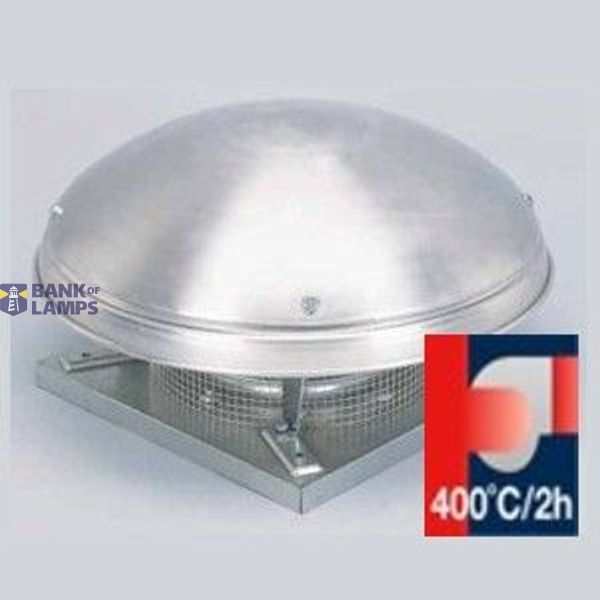

CTHT/8-630
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | CTHT/8-630 |
| Brand | S&P |
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8414 5925 00 |
| ETIM | EC011011 |
| Nominal current | 4.9 A |
| Housing material | Aluminium |
| Integrated timer | Yes |
| Supporting protocol for Modbus | Yes |
| Electrical connection | Terminals |
| Nominal voltage | Other |
| Frequency | 50 Hz |
| Pitch measure | 0 mm |
| With thermal protection | No |
| Operation by app | Yes |
| With pressure sensor | Yes |
| Suitable for (extra) pressure sensor | Yes |
| Max. air volume at 50 Pa | 14561.7 m³/h |
| With constant volume flow control | Yes |
| Max. air volume at 100 Pa | 13521.7 m³/h |
| Max. air volume at 150 Pa | 12454.7 m³/h |
| Max. air volume at 200 Pa | 11345.7 m³/h |
| Max. air volume at 250 Pa | 10172.8 m³/h |
| Max. air volume at 300 Pa | 8951.8 m³/h |
| Max. air volume at 400 Pa | 5578.88 m³/h |
| Max. medium temperature (continuous) | 120 °C |
| Nominal duct diameter | 710 mm |
| With wireless remote control | Yes |
| Indirect drive | No |
| With sound absorber | Yes |
| Housing material quality | AlMg3 (3.3503) |
| Material impeller | Steel |
| Axial model | No |
| Material quality impeller/pump wheel | Polypropylene (PP) |
| Surface protection housing | Galvanized |
| Surface protection impeller | Galvanized |
| Air supply roof fan | No |
| Exhaust direction | Horizontal |
| With maintenance-/service switch | No |
| Base size, internal, square | 1100 mm |
| Sound pressure level at 4 m (outdoor) at Qmax | 63 dB(A) |
| Single-speed motor | No |
| Single-speed motor controllable with | Frequency |
| Back draught shutter | None |
| Specific fan power at Qmax | 381 kW/(m³/s) |
| Cover design | Mushroom |
| Suitable for wireless remote control | Yes |
Packing details
| Packing level 1 | 8413893065773 |
