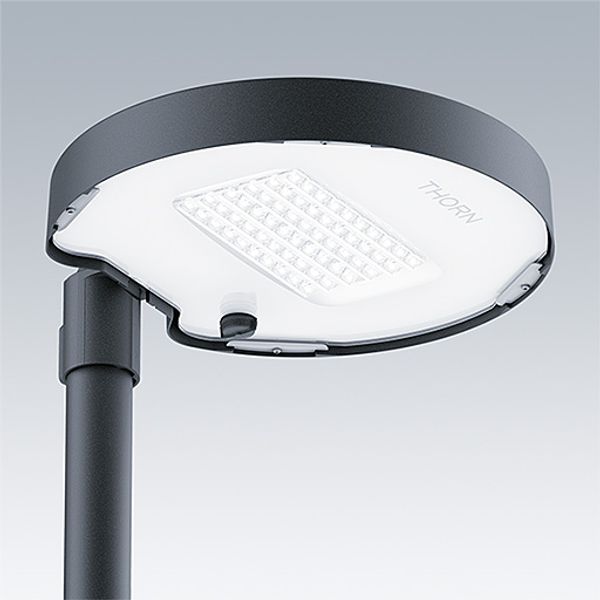

CT L 48L35-730 NR CL2 T60F ANT - LED Amenity lighting lantern
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 5037319872351
MPN: 96634302
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | CT L 48L35-730 NR CL2 T60F ANT - LED Amenity lighting lantern |
| Brand | Thorn |
| Categories |
Street lighting
|
| Country of origin | GB |
| Harmonized System Code | 9405 1190 00 |
| Colour rendering index CRI | 70-79 |
| Height/depth | 87 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 3000 K |
| Max. system power | 50 W |
| Rated luminous flux according to IEC 62722-2-1 | 7558 lm |
Packing details
| Packing level 1 | 5037319872351, 5037319872351 |
Other Technical data
| Protection class | II |
| Lamp holder | None |
| Colour housing | Anthracite |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Diameter | 510 mm |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| With connection cable | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Adjustable optics | No |
| Colour of light | White |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | Yes |
| Power factor | 0.97 |
Downloads
Description
An elegant urban lantern with durable performance. Programmable LED driver, set for fixed output, driving 48 LEDs at 350mA. Body: large size, die-cast aluminium (EN AC-44300), anthracite (close to RAL7043). Shaft:. Cover: glass. Fixings: stainless steel with anti-galvanic treatment. Narrow Road optic, with Colour Rendering Index min.: 70 Correlated colour temperature*: 3000 Kelvin LEDs supplied. Class II electrical, Impact strength: IK08, IP66, Ta max.: 35°C. Supplied with Ø60mm spigot adaptor pre-fitted for post-top, 5° tilt.
Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode.
Dimensions: Ø510 x 87 mm
Luminaire input power: 50 W
Luminaire luminous flux: 7558 lm
Luminaire efficacy: 151 lm/W
Weight: 9.1 kg
Scx: 0.05 m²
