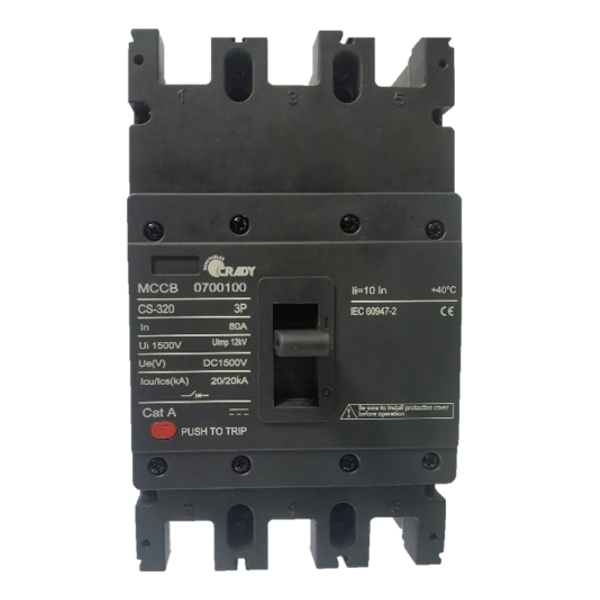

CS-MCCB1500V-320-80A-MCCB

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 8426487583577

MPN: 0700100

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	CS-MCCB1500V-320-80A-MCCB
Brand	CRADY
Categories	Circuit breakers 80A
Country of origin	CN
Harmonized System Code	8536 5003 00
Rated current	80 A
Rated voltage	1500 V
Release characteristic	A
Width in number of modular spacings	1
Number of poles (total)	4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	20 kA

Packing level 1

8426487583577

Voltage type	DC
Built-in depth	140 mm
Frequency	50-60 Hz
Rated insulation voltage Ui	1500 V
Explosion-proof	No
Number of protected poles	4
Concurrently switching neutral conductor	No
Connectable conductor cross section solid-core	- mm²
Connectable conductor cross section multi-wired	- mm²
Ambient temperature during operating	- °C
Flush-mounted installation	No
Additional equipment possible	No
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	20 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	20 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	20 kA
Rated impulse withstand voltage Uimp	8 kV

Declaration DOC CE (Declaration of conformity CE) Product data sheet

Interruptor automático CS-MCCB1500V-320-80A de caja moldeada
