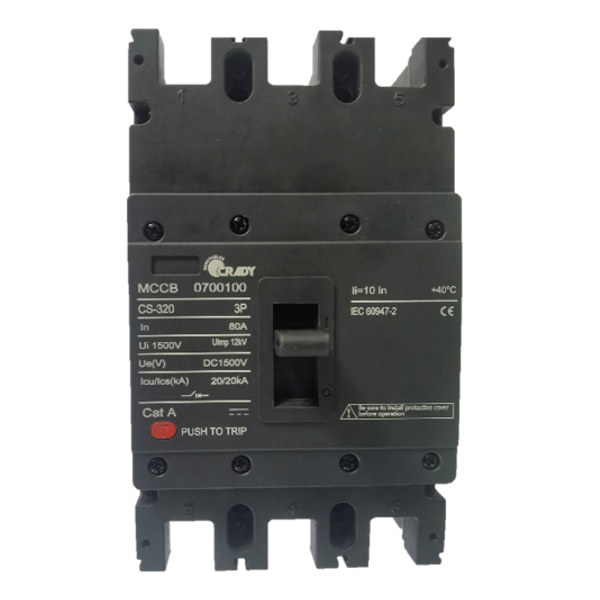

CS-MCCB1500V-320-200A-MCCB
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 8426487583621
MPN: 0700104
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | CS-MCCB1500V-320-200A-MCCB |
| Brand | CRADY |
| Categories |
Breakers
|
| Country of origin | CN |
| Harmonized System Code | 8536 5003 00 |
| Rated current | 200 A |
| Rated voltage | 1500 V |
| Release characteristic | A |
| Width in number of modular spacings | 1 |
| Number of poles (total) | 4 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 20 kA |
Packing details
| Packing level 1 | 8426487583621 |
Other Technical data
| Voltage type | DC |
| Built-in depth | 140 mm |
| Frequency | 50-60 Hz |
| Rated insulation voltage Ui | 1500 V |
| Explosion-proof | No |
| Number of protected poles | 4 |
| Concurrently switching neutral conductor | No |
| Connectable conductor cross section solid-core | - mm² |
| Connectable conductor cross section multi-wired | - mm² |
| Ambient temperature during operating | - °C |
| Flush-mounted installation | No |
| Additional equipment possible | No |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 20 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 20 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 20 kA |
| Rated impulse withstand voltage Uimp | 8 kV |
Downloads
Description
Interruptor automático CS-MCCB1500V-320-200A de caja moldeada
