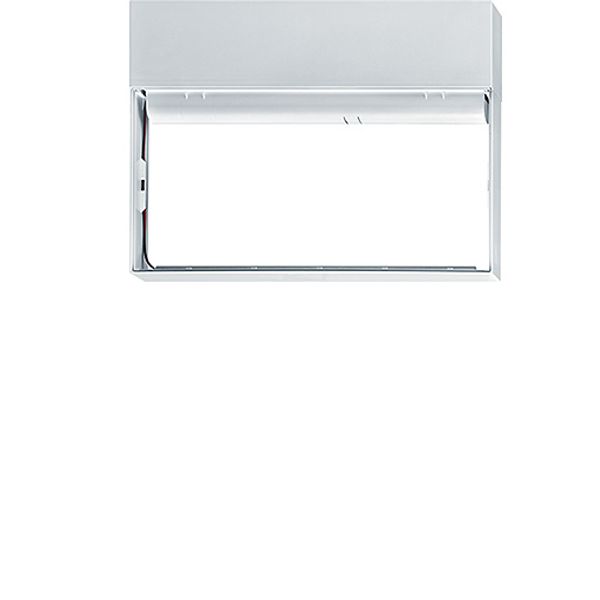

CROSSIGN 110 P MSC ELP WH - Escape sign luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 9010299213143
MPN: 42934364
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | CROSSIGN 110 P MSC ELP WH - Escape sign luminaire |
| Brand | Zumtobel |
| Categories |
Emergency luminaires
|
| Country of origin | RS |
| Harmonized System Code | 9405 6180 00 |

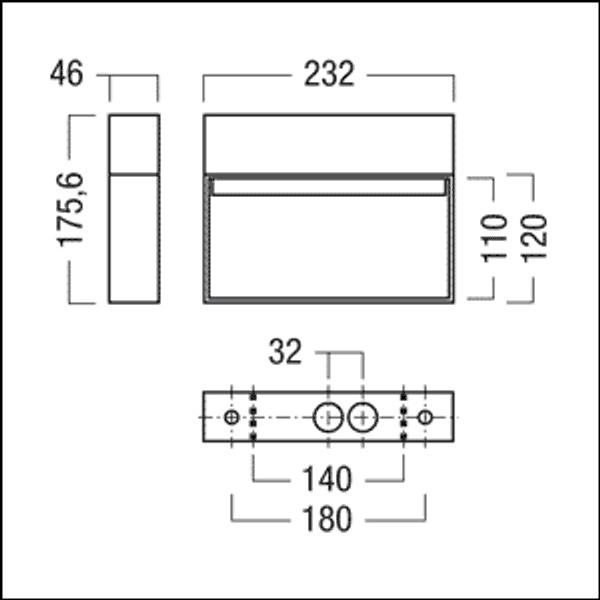

| Width | 46 mm |
| Length | 232 mm |
| Height/depth | 176 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK05 |
| Nominal voltage | 48 V |
| Degree of protection (IP) | IP42 |
| Max. system power | 2.3 W |
| Rated luminous flux according to IEC 62722-2-1 | 41 lm |
Packing details
| Packing level 1 | 9010299213143, 9010299213143 |
Other Technical data
| Mounting method | Surface mounting/recessed mounting |
| Protection class | II |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Other |
| Colour housing | White |
| Voltage type | DC |
| Housing material | Aluminium |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Suitable for number of lamps | 1 |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 90 % |
| Exchangeable control gear | No |
| Power factor | 1 |
Downloads
Videos
Description
LED Escape sign luminaire, Luminaire for central emergency power supply with 48V DC, for single monitoring of the luminaire via Powerline in connection with the nBox System, settable emergency light level; ; ; housing made of polycarbonate white (RAL 9016), injection moulded; Addressing alternatively also possible optically; luminaire easy to install; zero maintenance thanks to LED technology; uniform backlighting of pictogram; luminance > 500 cd/m² in the white region; Luminaire input power: 2.3 W; protection rating: IP42, class of protection: SC2; Impact strength: IK05; Non-maintained and maintained mode settable via the nBox, Maintained mode: -30 °C to +40 °C, non-maintained mode: -30 °C to +45 °C; power supply: 48 V DC (FELV); dimensions of luminaire including escape sign: 232 x 46 x 176 mm; weight: 0.63 kg; Luminaire wired with halogen-free leads; max. line length from emergency power source to last luminaire: 200 m.; Luminaire with D symbol (for use in environments in which no unusual accumulation of dust is expected); please order escape sign separately;
