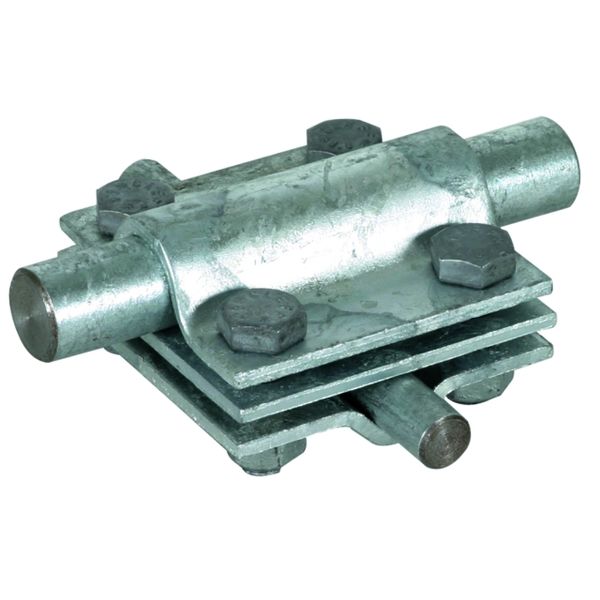

Cross unit St/tZn f. Rd 8-10/16mm - Rd 16/Fl 30mm, intermediate plate

Order only

Price (excl. VAT):

9,68 €

This price is valid until 24.12.26

EAN: 4013364024526

MPN: 319202

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Cross unit St/tZn f. Rd 8-10/16mm - Rd 16/Fl 30mm, intermediate plate
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Surface protection	Hot-dip galvanized
Type of fastening screws	Hexagon screw
Material	Steel
Lightning current load-bearing capacity (10/350 µs)	100 kA
Diameter round conductor 1	16 mm
Width flat conductor 1	30 mm

Packing details

Packing level 1

4013364024526, 4013364024526

Other Technical data

Type of connector	Cross connector
Diameter round conductor 2	8-10 mm

Downloads

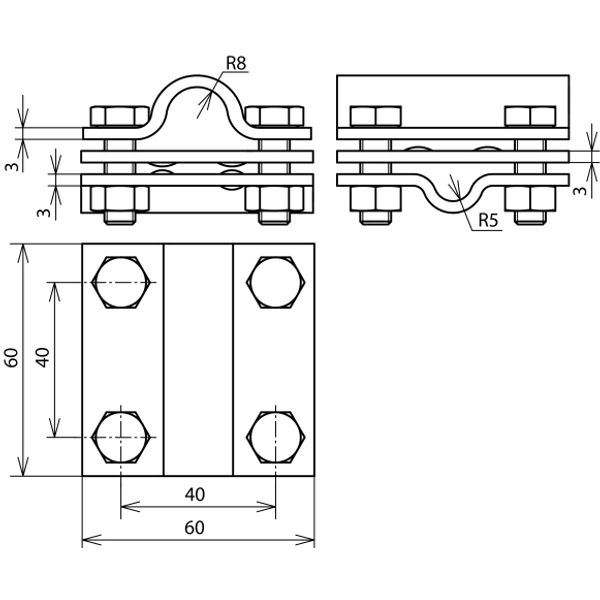

Product data sheet Dimensioned drawing Deep link REACH

Description

Cross unit according to EN 62561-1, for aboveground and underground connection of round and flat conductors to air-termination / earth entry rods. Type with intermediate plate and M8 screws.
