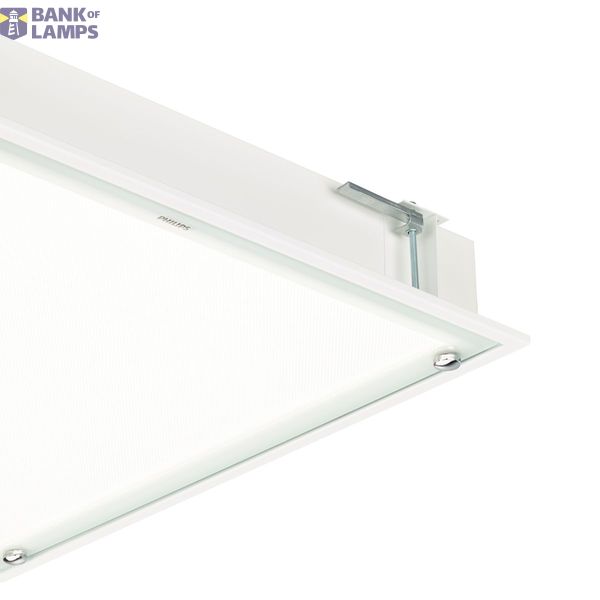

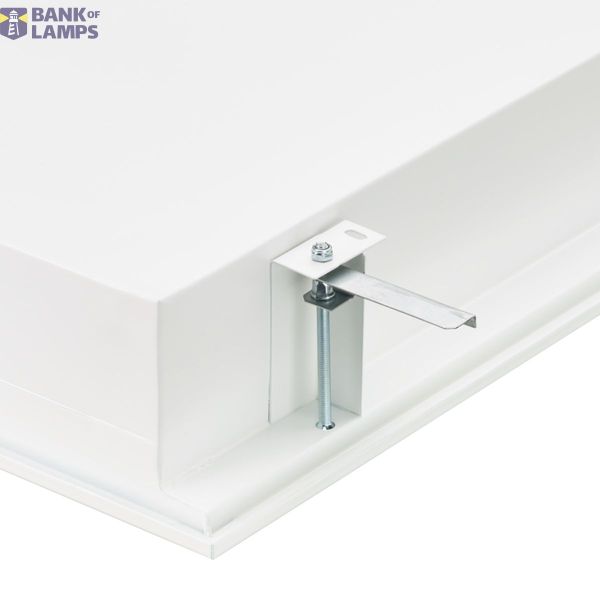

CR350B LED60S/940 PSU W60L60
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | CR350B LED60S/940 PSU W60L60 |
| Brand | PHILIPS |
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC002892 |

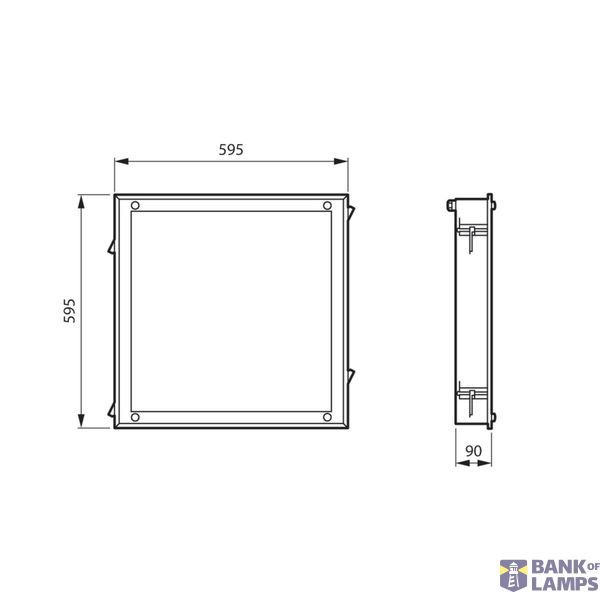

| Width | 595 mm |
| Colour housing | White |
| Colour rendering index CRI | 90-100 |
| Length | 595 mm |
| Height/depth | 90 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK07 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 4000 K |
| Max. system power | 60 W |
| Rated luminous flux according to IEC 62722-2-1 | 6000 lm |
| Luminaire efficacy | 100 lm/W |
Packing details
| Packing level 1 | 8718699797133 |
Other Technical data
| Protection class | I |
| Outer diameter | 0 mm |
| Lamp holder | Other |
| Conductor cross section | 0.5 mm² |
| Connection type | Other |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 580 mm |
| Built-in diameter | 580 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Luminous intensity | 3154 cd |
| Number of poles | 3 |
| Housing material | Steel |
| Built-in length | 595 mm |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for wall mounting | No |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Nominal current | 248-274 mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 0 h |
| Rated life time L80/B10 at 25 °C | 50000 h |
| Rated life time L90/B10 at 25 °C | 0 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Total harmonic distortion | 6 |
| Photobiological safety according to EN 62471 | RG0 |
| Rated ambient temperature according to IEC62722-2-1 | -20-35 °C |
| Filament test according to IEC 60695-2-11 | 960 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Diffuser lens/optic/panel |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Unified Glare Ratio (UGR) | 19 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 24 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 5 % |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 0 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 250 mm |
| Surface protection housing | Powder coating |
| Power factor | 0.9 |
| Energy Efficiency Index (EEI) | 0 |
Downloads
Description

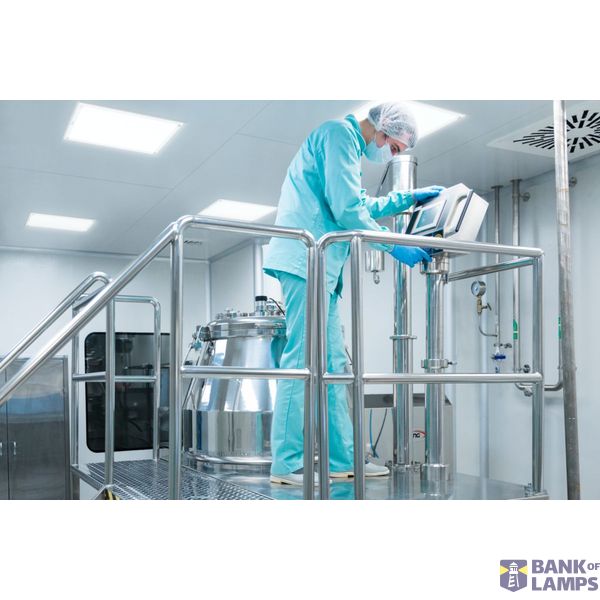

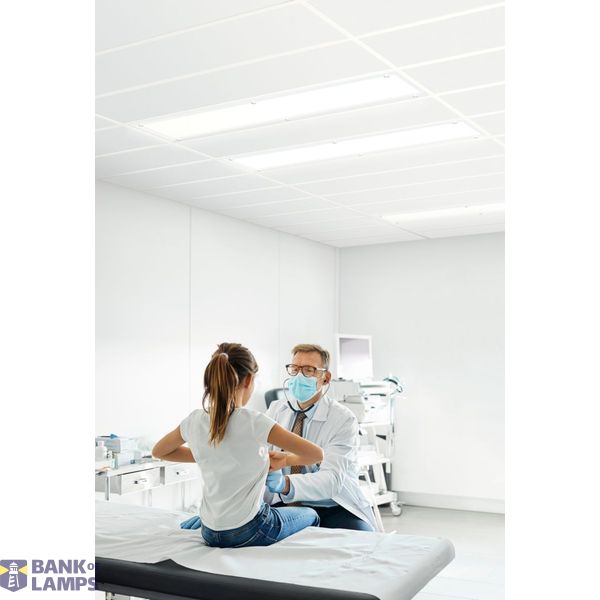

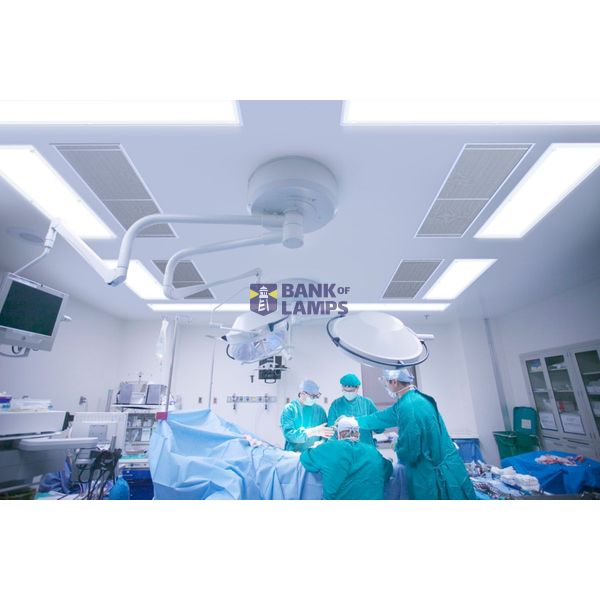

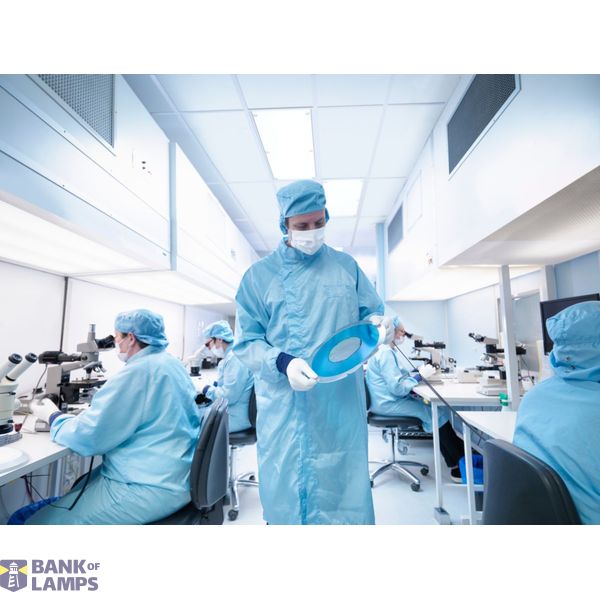

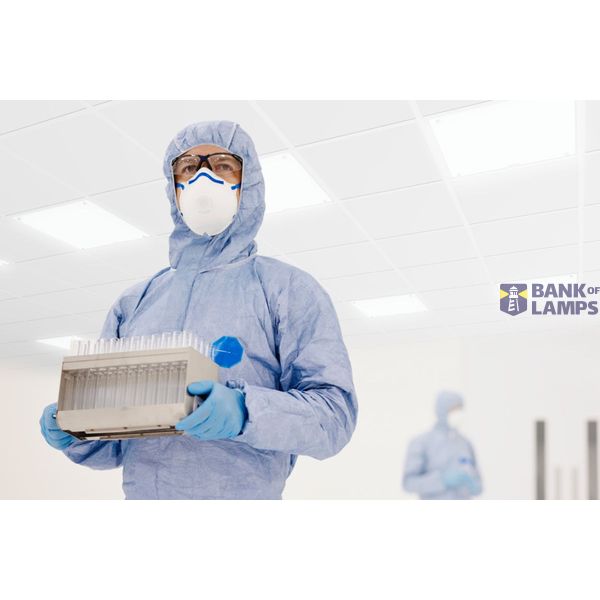

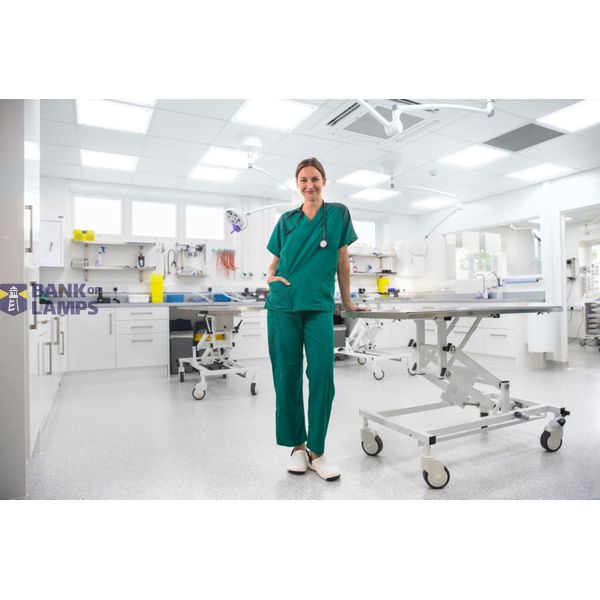

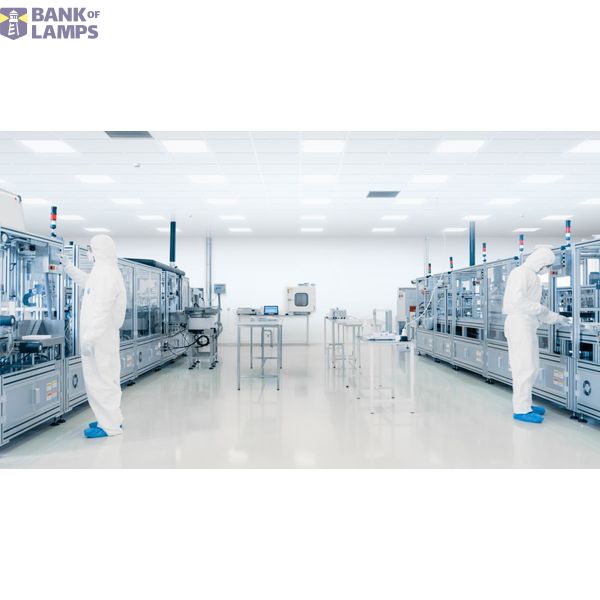

Klanten die accommodaties met hoge hygiënische eisen exploiteren, zoals ziekenhuizen, laboratoria en bepaalde productie-omgevingen zoals in de farmaceutische industrie of elektronicafabricage vereisen speciale, eenvoudig te reinigen, stofdichte IP65-armaturen die voldoen aan alle verlichtingseisen en -normen. De hoge kleurweergave van de armatuur, in combinatie met geringe verblinding en een hoge lumen opbrengst bieden eersteklas optische prestaties die nodig zijn voor klinische ruimten in ziekenhuizen en andere ruimten waar het belangrijk is om kleuren van elkaar te onderscheiden, zoals in de grafische sector en kledingindustrie.
