CR2002230 Eaton Distribution parts
Order only
Price (excl. VAT):
25,14 €
EAN: 4015081319800
MPN: 135169
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | CR2002230 Eaton Distribution parts |
| Brand | EATON |
| Categories |
Assembly Accessories and Parts
|
| Country of origin | SI |
| Harmonized System Code | 8538 9099 00 |
| Rated operating voltage | 400 V |
| Voltage type (excitation voltage) | AC/DC |
| Voltage type (operating voltage) | AC/DC |
| Degree of protection (IP) | IP20 |
| Rated operation current | 20 A |
| Rated excitation voltage | 195.5-253 V |
Packing details
| Packing level 1 | 4015081319800 |
Other Technical data
| Built-in depth | 60 mm |
| Width in number of modular spacings | 1 |
| Utility category | 1 |
| Max. incandescent lamp load | 1950 W |
| Max. load fluorescent lamp | 910 VA |
| Max. load fluorescent lamp (Duo circuit) | 1160 VA |
| Max. load fluorescent lamp (parallel compensated) | 232 VA |
| Slider for hand switch | No |
| Additional equipment possible | Yes |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 0 |
| Hum-free | Yes |
| With day/night function | No |
Description

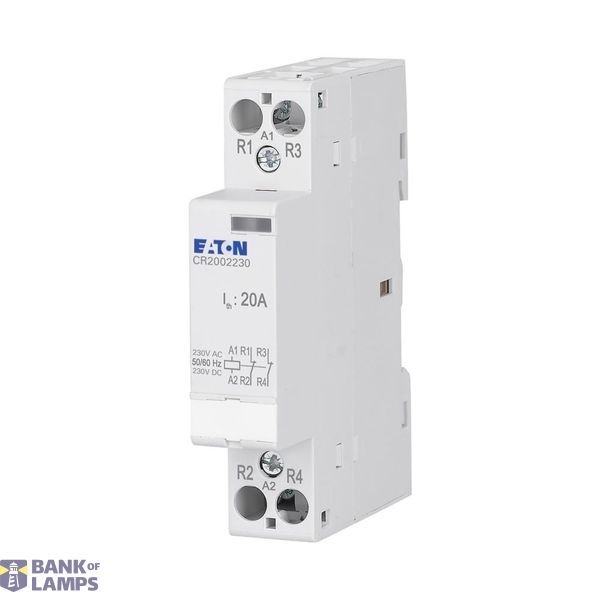

Installation contactor, rated control circuit voltage 230V AC/DC, rated operational current at AC1 20A, function: 2NC, details according to IEC/EN 61095, IEC/EN 60947-4-1, standard front dimension 45 mm, mounting width 1 MU, top-hat rail mounting
