CR2 L35k-840 PC NBCG LDO WH - LED high-bay luminaire

Name: CR2 L35k-840 PC NBCG LDO WH - LED high-bay luminaire
Brand: Zumtobel
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 9010299596345

MPN: 42188086

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	CR2 L35k-840 PC NBCG LDO WH - LED high-bay luminaire
Brand	Zumtobel
Categories	High bay
Country of origin	RS
Harmonized System Code	9405 1190 00

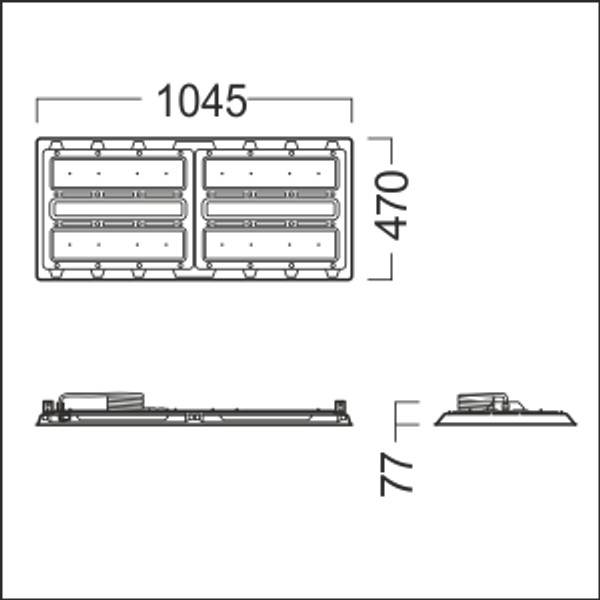

Width	470 mm
Colour rendering index CRI	80-89
Length	1045 mm
Height/depth	77 mm
Lamp type	LED not exchangeable
Impact strength	IK08
Nominal voltage	220-240 V
Degree of protection (IP)	IP66
Beam angle	Medium beam 21-40°
Colour temperature	4000 K
Max. system power	234 W
Rated luminous flux according to IEC 62722-2-1	33140 lm
Luminaire efficacy	142 lm/W

Packing details

Packing level 1

9010299596345, 9010299596345

Other Technical data

Protection class	I
Reflector	None
Lamp holder	None
Conductor cross section	1 mm²
Connection type	Other
Colour housing	White
Voltage type	AC
Type of control gear	LED operating device current-controlled
Ball-proof	No
Housing material	Steel
Suitable for emergency lighting	No
Light sharing	Symmetric
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	Yes
Suitable for number of lamps	1
With control gear	Yes
Colour of light	White
Constant light output (CLO)	No
Type of wiring	Ending
Rated life time L70/B50 at 25 °C	100000 h
Colour consistency (McAdam ellipse)	SDCM2
Rated ambient temperature according to IEC62722-2-1	-20-45 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	Yes
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
No dim function	No
Dimming DSI	No
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	90 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)	80 %
Colour temperature adjustable	No
Luminous flux adjustable	Continuously variable
Beam angle adjustable	No
Exchangeable control gear	Yes
Power factor	0.97

Downloads

Deep link REACH Declaration DOC CE (Declaration of conformity CE) Declaration RoHS Sales brochure

Description

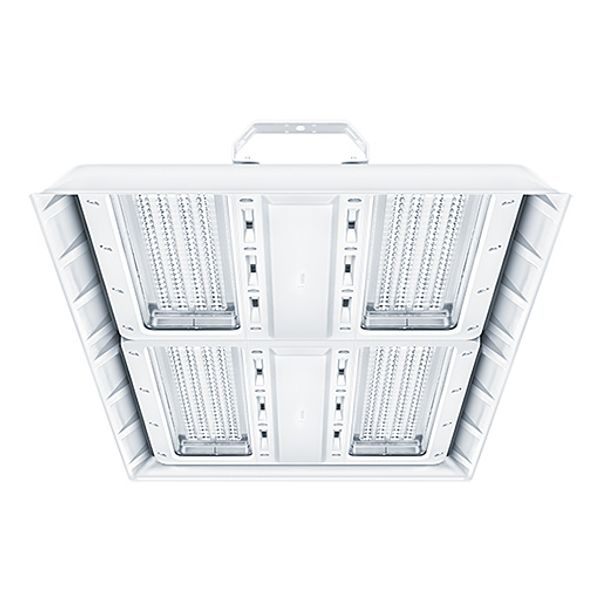

LED high-bay luminaire Luminaire input power: 234 W, including LED converter, Slave luminaire for DALI control (DALI only), housing made of extra-robust, deep-drawn sheet steel, powder coated in colour white. Cover of high-quality, impact-resistant and UV-stabilised polycarbonate (PC), for use in the industrial and logistics sectors. Chromaticity tolerance (initial MacAdam): 2. Luminaire luminous flux: 33140 lm, Luminaire efficacy: 142 lm/W Colour rendering Ra > 80, colour temperature 4000 K. glare-free lighting: UGR < 19 (EN 12464:2011). Sealed optical lens system. Lenses with diagonal dome structure for maximum efficiency Symmetric narrow distribution luminaire (narrow beam) for reduced glare (NBCG). Pre-assembled 2m long 5 x 1 mm² connection cable for very high continuous temperatures (halogen-free, flame-retardant). Vibration resistant (EN 60598-1:2015/IEC 60598-1:2017 Ed. 8.1). LED risk group RG0 (IEC/EN 62471), luminaire wired with halogen-free leads, silicone-free. Note: please contact your consultant if you are planning to use in ambient atmospheres with chemical loads, high or condensed air humidity or large temperature fluctuations. Protection class: SC1; degree of protection: IP66; ambient temperature: -20°C to +45°C; Dimensions: 1045 x 470 x 77 mm. Weight: 9.2 kg.
