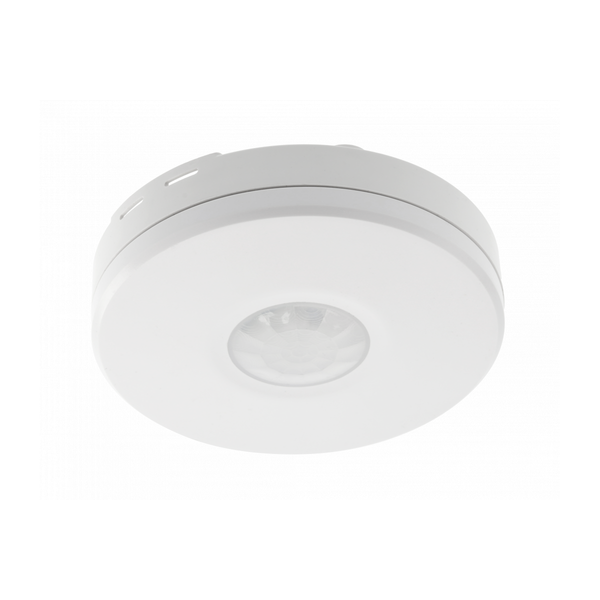

Motion sensor CR-12, max. 2000 W, detection angle 360°, range 8 m, IP65, white

Order only

Price (excl. VAT):

6,39 €

This price is valid until 30.06.26

EAN: 5902801261664

MPN: CR-CR1200-00

Package: 1

Box: 50

Pallet: 1500

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Motion sensor CR-12, max. 2000 W, detection angle 360°, range 8 m, IP65, white
Brand	GTV Lighting
Categories	Motion & Presence Sensors
Colour	White
Nominal voltage	220-240
Degree of protection (IP)	IP65

Packing details

Packing level 1	5902801261664
Packing level 2	5902801261688
Packing level 3	2012801374189
Packing level 4	2012801374127

Downloads

Instructions for use Declaration DOC CE (Declaration of conformity CE)

Description

The CR-12 uses technologies to detect infrared energy emitted by the human body. This modern method ensures the reliability of the device both during the day and at night, which makes it ideal for any home, office or warehouse.

The sensor can be easily surface-mounted on the ceiling. The recommended ceiling mounting height is between 2.2 and 4 meters.

The maximum detection range of the sensor has a radius of 4 meters, which allows for effective monitoring of the space.

Customized features:

Distinguishing between day and night: The sensor automatically adjusts its operation depending on the light conditions. In the "sun" setting, it works regardless of the time of day, while in the "3" setting, it only activates when the light intensity drops below 3 LUX.
Adjustable hold-on: The user can choose the hold-up time when motion is detected, with options from 10 seconds to 30 minutes (10 sec, 30 sec, 90 sec, 5 min, 10 min, 30 min), allowing the sensor to be tailored to individual needs and preferences.
