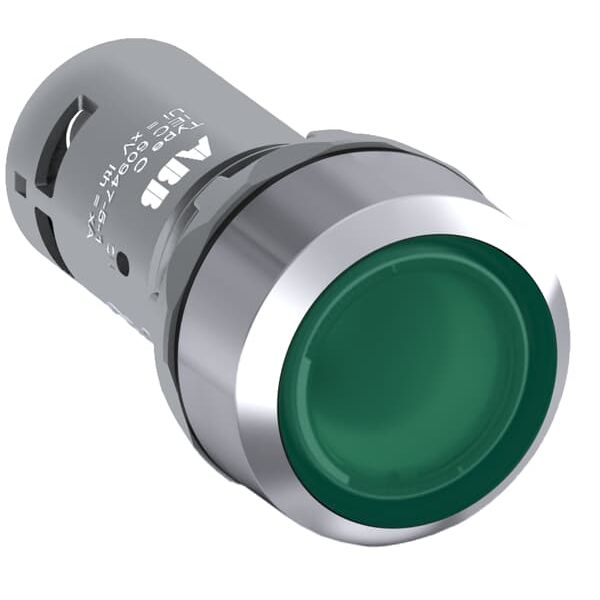

CP1-31G-10 Pushbutton
Order only
Price (excl. VAT):
11,68 €
EAN: 7320500551431
MPN: 1SFA619100R3112
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | CP1-31G-10 Pushbutton |
| Brand | ABB |
| Categories |
Push Buttons
|
| Colour button | Green |
| Type of button | Flat |
| Degree of protection (IP) | IP67/IP69K |
Packing details
| Packing level 1 | 7320500551431 |
Other Technical data
| Hole diameter | 22 mm |
| Suitable for illumination | Yes |
| Spring-return | Yes |
| Colour front ring | Chrome |
| Type of electric connection | Screw connection |
| Material front ring | Metal |
| With front ring | Yes |
| Construction type lens | Round |
| Supply voltage lamp | 300 V |
| Switching function latching | No |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
Downloads
Description
The CP1-31G-10 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Green - Illuminated - Chrome Metal - 1NO - Green - 1 NO - 0 NC - , 24 V
This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
