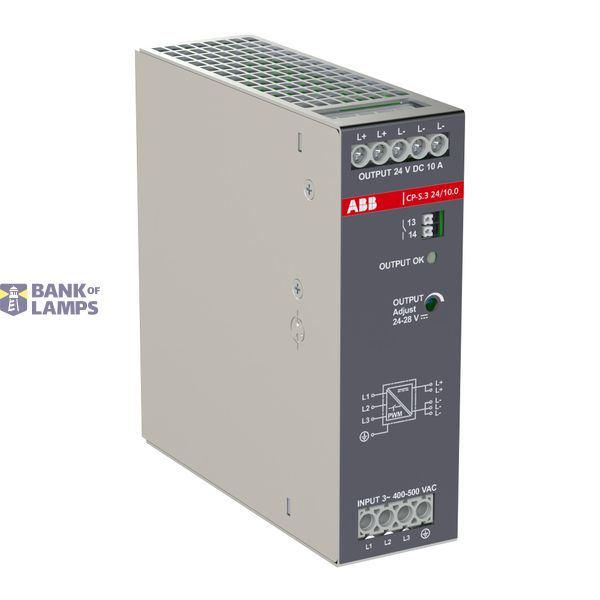

CP-S.3 24/10.0 Power supply

Order only

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 4053546170238

MPN: 1SVR340667R1000

Package: 1

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CP-S.3 24/10.0 Power supply
Brand	ABB
Categories	DC-power supply
Width	40 mm
Height	129.4 mm
Depth	126.8 mm
Voltage type of supply voltage	AC/DC
Power output	240 W
Rail mounting possible	Yes
1st secondary output voltage	24 V
Rated supply voltage at AC 50 Hz	3-575 V
Max. output current 1	15 A
Nominal value output current 1	10 A

Packing details

Packing level 1

4053546170238, 4053546170238

Other Technical data

Built-in height	129.4 mm
Power consumption	258 VA
Built-in width	40 mm
Modular version	No
Suitable for safety functions	No
Output voltage stabilized	Yes
Type of electric connection	Screw connection
Stabilized	Yes
Degree of protection (IP)	IP20
Direct mounting possible	No
2nd secondary output voltage	0 V
3rd secondary output voltage	0 V
Secondary voltage adjustable	No
Rated supply voltage at AC 60 Hz	3-575 V
Rated supply voltage at DC	- V
Short-circuit-proof	Yes
Performance level according to EN ISO 13849-1	None
Max. output current 2	0 A
Max. output current 3	0 A
Nominal value output voltage 1	24 V
Nominal value output voltage 2	0 V
Nominal value output voltage 3	0 V
Nominal value output current 2	0 A
Nominal value output current 3	0 A
SIL according to IEC 61508	None
Degree of protection (NEMA)	1

Description

The CP-S.3 24/10.0 is a power supply from the new generation CP-S.3 range. The primary switch mode power supply offers a wide range input of 3 ~ 320 ... 575 V AC, rated input voltage is 3 ~ 400 ... 500 V AC. The rated output power is 240 W, rated output current is 10 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 150 % for 5 s and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.
