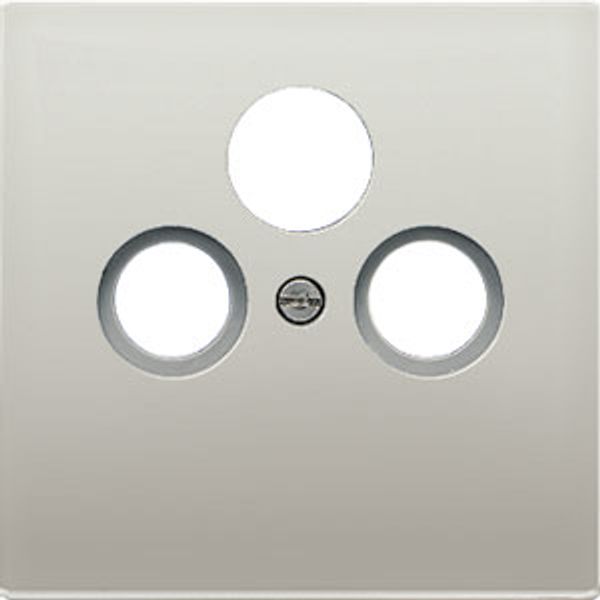

Cover plate f. TV-SAT socket ES2990SAT
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
12,93 €
EAN: 4011377748804
MPN: ES2990SAT
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Cover plate f. TV-SAT socket ES2990SAT |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8538 9099 00 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Other |
| Colour | Stainless steel |
| Halogen free | Yes |
| With hinged lid | No |
| Utilization | SAT |
| Surface protection | Other |
| Outlet direction | Straight |
| With strain relief | No |
| Material quality | Stainless steel |
| Imprintable label | Without indication field |
| Suitable for number of connectors | 1 |
| Material | Metal |
| Type of fastening | Mounting with screw |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| RAL-number (similar) | 0 |
| With dust cover | No |
| With imprint | No |
| With buses/couplings | No |
| Support ring | No |
| Transparent | No |
| Surface finishing | Matt |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 70 mm |
| Device height | 70 mm |
| Device depth | 0 mm |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377748804 |
| Packing level 2 | 4011377748804 |
Downloads
Description
Cover plate designed for TV-SAT socket functionality, enabling signal connection in structured cabling systems.Intended for straightforward surface mounting. Surface mounted (plaster).Halogen free for safety compliance.Stainless steel color and material;high-grade stainless steel quality ensures durability.Material exhibits matte surface finishing with unspecified protection type labeled "other." Fastened using screw mounts.Outlet direction is straight.Suitable for IP20 rated environments offering basic ingress protection against solid objects greater than 12mm but no moisture resistance suitable indoors only. Dimensions listed:width 70 mm, height 70 mm, depth not applicable/unused at 0 mm installation flush design possible or exterior application corrections needed to socket tooling depth.Use limited to SAT connections one connector configured no modular system functionalities unsupported bus/shielding invalidautions strain relief accommodating single coupling direct pathway cable w/o housing defenses
