Coupler 6p socket str-rel, 3+3 wht/blu
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Coupler 6p socket str-rel, 3+3 wht/blu |
| Brand | Ensto |
| ETIM | EC002560 |
| Model | Plug |
| Connection type | Screw connection |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 20 A |
| Number of poles | 6 |

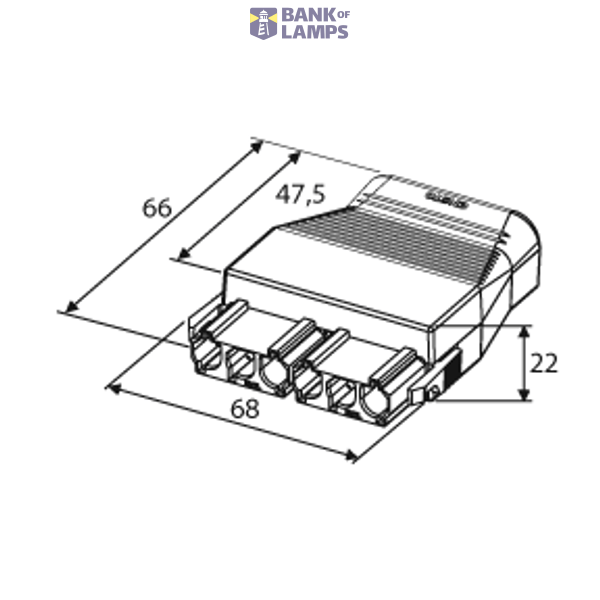

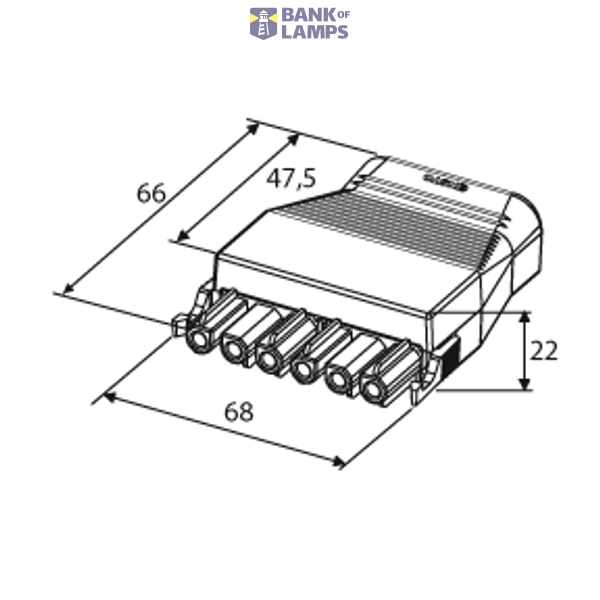

| Length | 66 mm |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 6418677723155 |
| Packing level 2 | 6418677723155 |
| Packing level 3 | 6418677723155 |
| Packing level 4 | 6418677723155 |
Other Technical data
| Width | 68 mm |
| Halogen free | Yes |
| Height | 22 mm |
| With strain relief | Yes |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Silver-plated |
| Pollution degree | 2 |
| Mechanical coding | Yes |
| Rated surge voltage | 4 kV |
| Contact material | CuZn |
| Number of connections per pole | 1 |
| Colour coding/contact insert | Multi-coloured |
| Connection cross section (fine-strand) | 0.75-4 mm² |
| Connection cross section (solid-core) | 0.75-4 mm² |
| Max. continuous temperature resistance contact part | 70 °C |
| Max. continuous temperature resistance strain relief | 70 °C |
Description

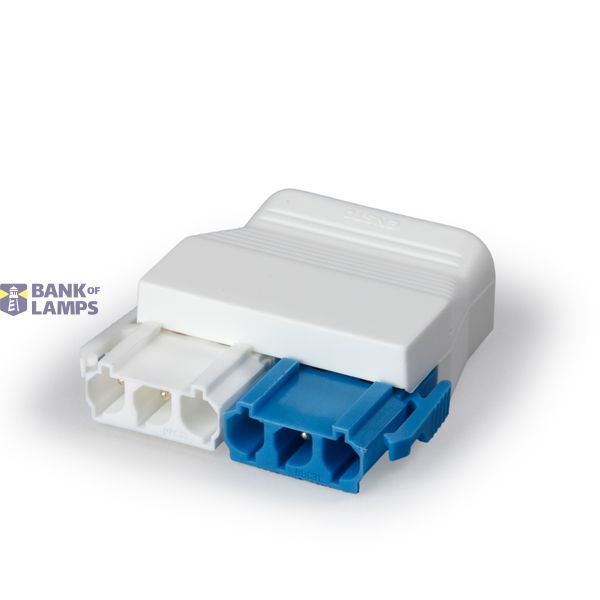

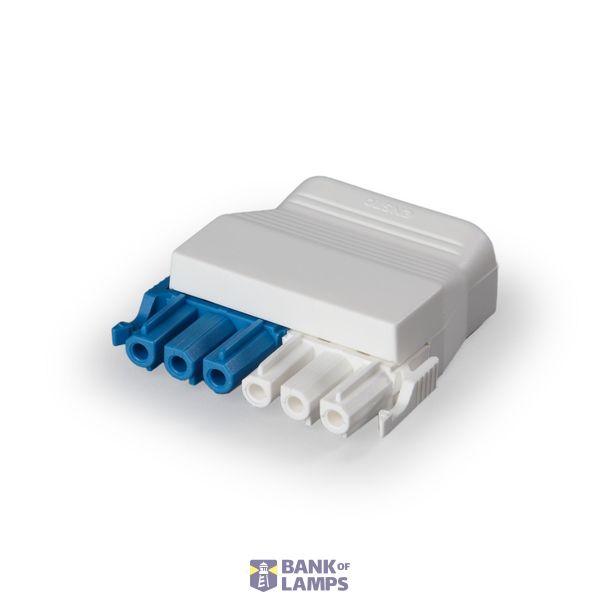

The 6-pole socket with strain-relief is used as the cable set socket for 6-pole circuits with 3-pole white and 3-pole blue. The NAC32H2.W and NBC32H1.S couplers and the strain-relief are included. Delivered in parts.
