EATON

COUPLER 63A-4POL-7H/500V D16-35MM

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name COUPLER 63A-4POL-7H/500V D16-35MM
Brand EATON
ETIM EC001320
IEC-amperage 63 A
Connection system Screwed terminal
Contact material Other
Degree of protection (IP) IP66
Voltage according to EN 60309-2 500 V (50+60 Hz) black

Packing details

Packing level 1 4250217406911

Other Technical data

Cable entry Other
Number of poles 4
Material Plastic
Surface treatment contacts Other
Angle of plug Straight
Military model No
Clock hour position 7 h
Identification colour Black

Description

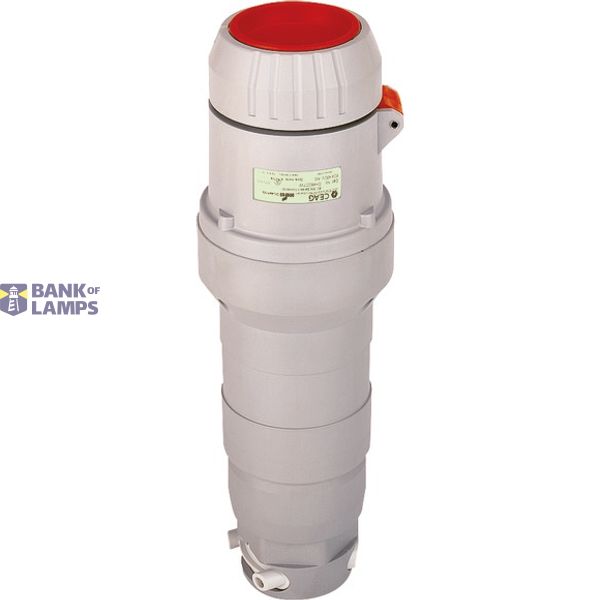

Coupler for industrial application, 63 A, 4-pole480-500 V, 7 h, 1 cable gland
