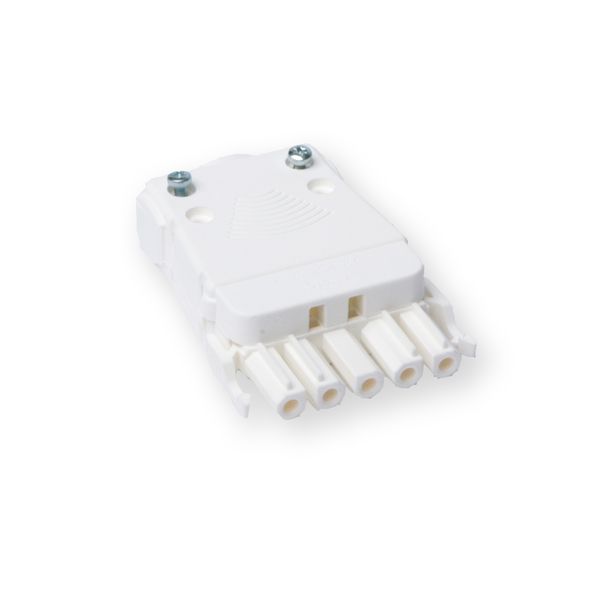

Coupler 5-p socket, str-rel, low, wht
Order only
Price (excl. VAT):
Price by request
EAN: 6418677114496
MPN: NAC52SL.W
Package: 1
Box: 100
Pallet: 6300
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Coupler 5-p socket, str-rel, low, wht |
| Brand | Ensto |
| Categories |
Plug-in Connectors
|
| Model | Plug |
| Connection type | Screw connection |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 20 A |
| Number of poles | 5 |
| Length | 60 mm |
| Degree of protection (IP) | IP20 |
| Pole codification | 3, N, PE, 2, 1 |
Packing details
| Packing level 1 | 6418677114496 |
| Packing level 2 | 6418677114496 |
| Packing level 3 | 6418677114496 |
Other Technical data
| Width | 59 mm |
| Halogen free | Yes |
| Height | 20 mm |
| With strain relief | Yes |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Silver-plated |
| Pollution degree | 2 |
| Mechanical coding | Yes |
| Rated surge voltage | 4 kV |
| Contact material | CuZn |
| Number of connections per pole | 1 |
| Colour coding/contact insert | White |
| Connection cross section (fine-strand) | 0.75-4 mm² |
| Connection cross section (solid-core) | 0.75-4 mm² |
| Max. continuous temperature resistance contact part | 70 °C |
| Max. continuous temperature resistance strain relief | 70 °C |
Description
For flexible, stranded and solid wires. Wire cross-section 0,75-4,0 mm�. Strain-relief for cables with outer diameter of 5,5-10,0 mm. Weight 25,8 g.
