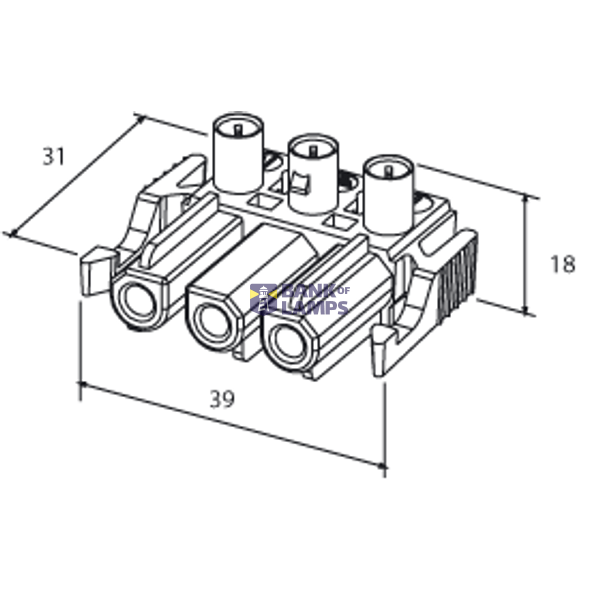

Coupler 5-p socket, red image 4

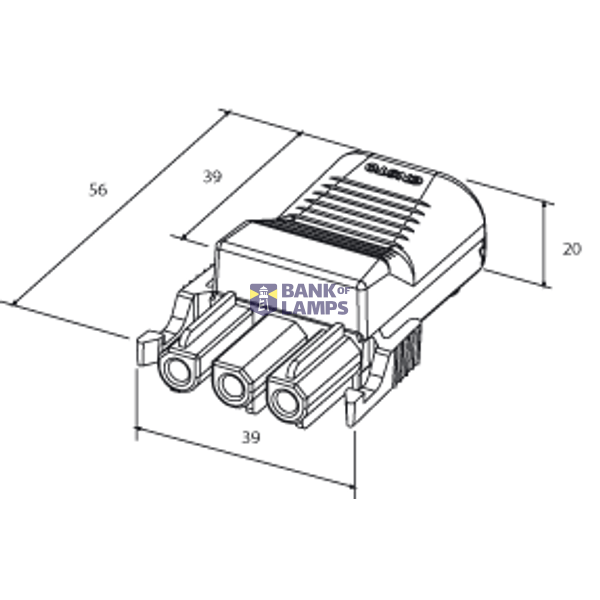

Coupler 5-p socket, red image 5

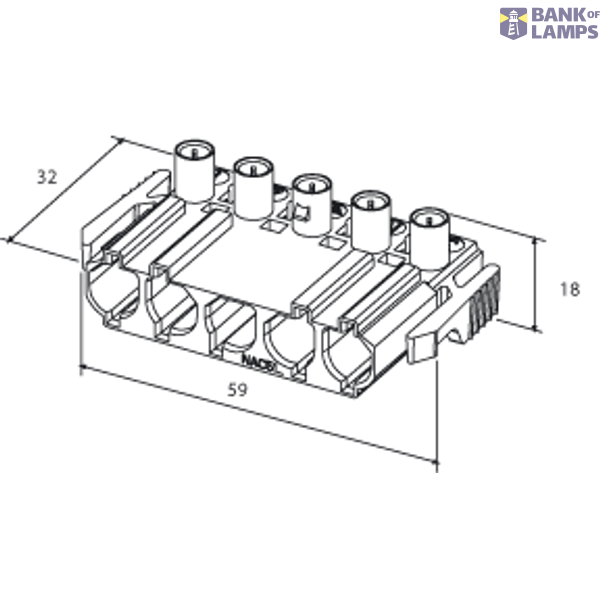

Coupler 5-p socket, red image 6

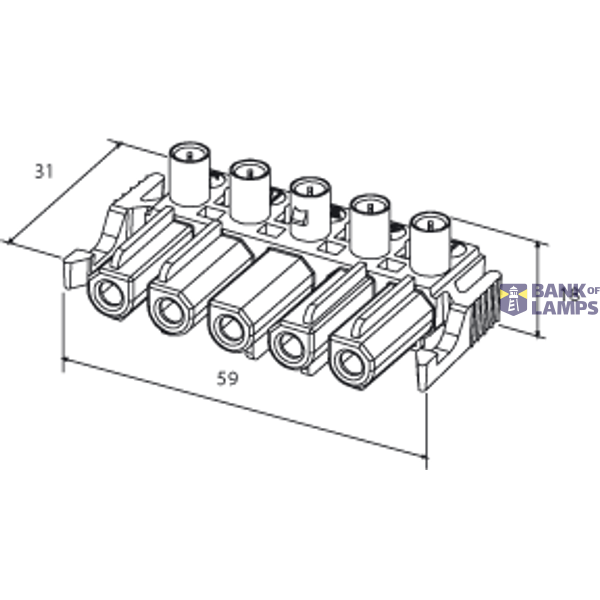

Coupler 5-p socket, red image 7
Coupler 5-p socket, red thumbnail 1
Coupler 5-p socket, red thumbnail 2
Coupler 5-p socket, red thumbnail 3
Coupler 5-p socket, red thumbnail 4
Coupler 5-p socket, red thumbnail 5
Coupler 5-p socket, red thumbnail 6
Coupler 5-p socket, red thumbnail 7
Ensto

Coupler 5-p socket, red

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Coupler 5-p socket, red
Brand Ensto
ETIM EC002566
Model Plug
Connection type Screw connection
Locking mechanism Integrated in plug-in connector
Rated current 20 A
Rated voltage 400 V
Number of poles 5
Housing material Polyamide (PA)
Surface treatment contacts Silver-plated
Contact material CuZn
Degree of protection (IP) IP20
Colour coding/contact insert Red

Packing details

Packing level 1 6418677700712
Packing level 2 6418677700712
Packing level 3 6418677700712

Other Technical data

Width 59 mm
Halogen free Yes
Height 18 mm
Colour housing Red
Length 31 mm
Pollution degree 2
Angle of plug Straight
Mechanical coding Yes
Rated surge voltage 4 kV
Connection size thread M3
Number of connections per pole 1
Built-in version Built-in part/plug-in connection
Colour of the separate adapter piece Without adapter piece
Connection cross section (fine-strand) 0.75-4 mm²
Connection cross section (solid-core) 0.75-4 mm²
Max. continuous temperature resistance contact part 70 °C
Max. continuous temperature resistance strain relief 70 °C
