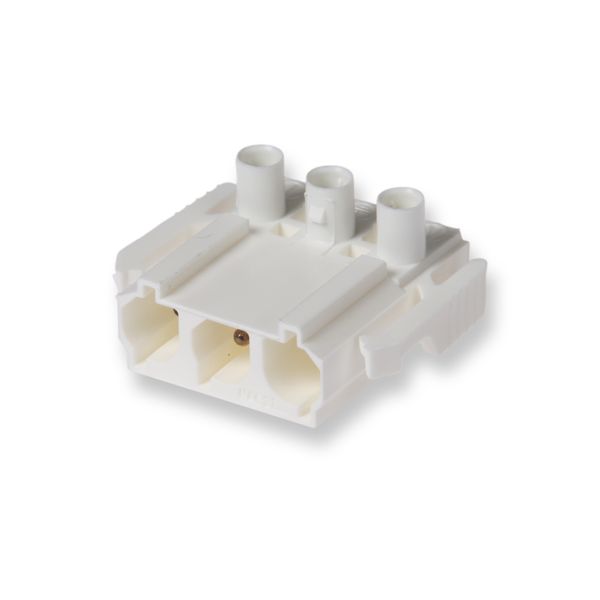

Coupler 3-p plug, wht
Order only
Price (excl. VAT):
1,68 €
EAN: 6418677109065
MPN: NAC31.W
Package: 1
Box: 200
Pallet: 21000
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Coupler 3-p plug, wht |
| Brand | Ensto |
| Categories |
Device Connectors
|
| Model | Plug |
| Connection type | Screw connection |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 20 A |
| Rated voltage | 250 V |
| Number of poles | 3 |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Silver-plated |
| Contact material | CuZn |
| Degree of protection (IP) | IP20 |
| Pole codification | L, N, PE |
| Colour coding/contact insert | White |
Packing details
| Packing level 1 | 6418677109065 |
| Packing level 2 | 6418677109065 |
| Packing level 3 | 6418677109065 |
| Packing level 4 | 6418677109065 |

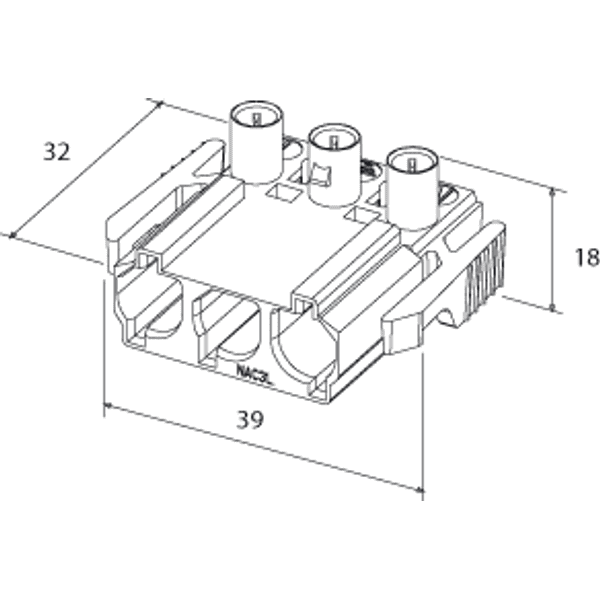

Other Technical data
| Width | 39 mm |
| Halogen free | Yes |
| Height | 18 mm |
| Colour housing | White |
| Length | 32 mm |
| Pollution degree | 2 |
| Angle of plug | Straight |
| Mechanical coding | Yes |
| Rated surge voltage | 4 kV |
| Connection size thread | M3 |
| Number of connections per pole | 1 |
| Built-in version | Built-in part/plug-in connection |
| Colour of the separate adapter piece | Without adapter piece |
| Connection cross section (fine-strand) | 0.75-4 mm² |
| Connection cross section (solid-core) | 0.75-4 mm² |
| Max. continuous temperature resistance contact part | 70 °C |
| Max. continuous temperature resistance strain relief | 70 °C |
Description
3 pole coupler without strain relief. For flexible, stranded and solid wires. Pole markings in parentheses.
