Coupler 2-p plug, str-rel, blk
Order only
Price (excl. VAT):
Price by request
EAN: 6418677113871
MPN: NAC21S.B
Package: 1
Box: 200
Pallet: 12600
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Coupler 2-p plug, str-rel, blk |
| Brand | Ensto |
| Categories |
Plug-in Connectors
|
| Model | Plug |
| Connection type | Screw connection |
| Locking mechanism | Integrated in plug-in connector |
| Rated current | 20 A |
| Number of poles | 2 |

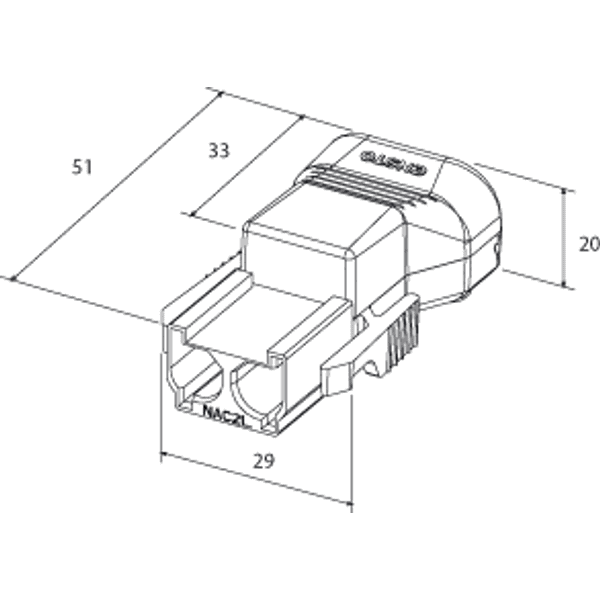

| Length | 51 mm |
| Degree of protection (IP) | IP20 |
| Pole codification | L, N |
Packing details
| Packing level 1 | 6418677113871 |
| Packing level 2 | 6418677113871 |
| Packing level 3 | 6418677113871 |
Other Technical data
| Width | 29 mm |
| Halogen free | Yes |
| Height | 20 mm |
| With strain relief | Yes |
| Housing material | Polyamide (PA) |
| Surface treatment contacts | Silver-plated |
| Pollution degree | 2 |
| Mechanical coding | Yes |
| Rated surge voltage | 4 kV |
| Contact material | CuZn |
| Number of connections per pole | 1 |
| Colour coding/contact insert | Black |
| Connection cross section (fine-strand) | 0.75-4 mm² |
| Connection cross section (solid-core) | 0.75-4 mm² |
| Max. continuous temperature resistance contact part | 70 °C |
| Max. continuous temperature resistance strain relief | 70 °C |
Description
For flexible, stranded and solid wires. Wire cross-section 0,75 - 4 mm�. Couplers with strain-relief are suitable for use with device and extension cables. Strain-relief for cables with outer diameter of 5,0 - 11,5 mm. Pole markings in parentheses.
