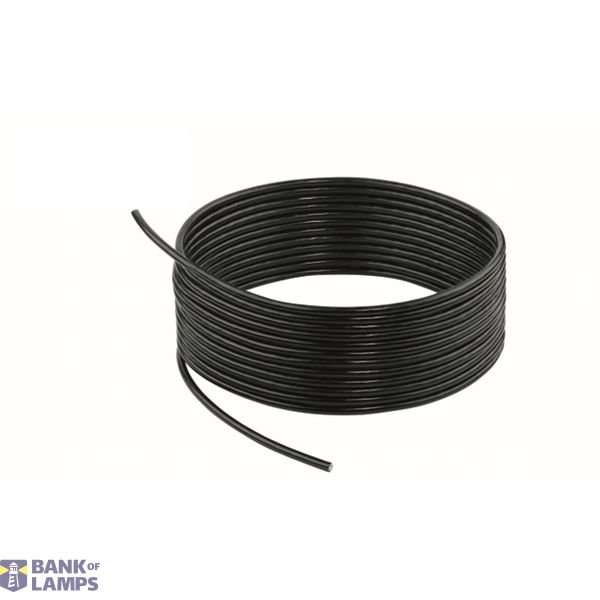

Copper data cable, System cable, T1-B, Number of wires: 2, PUR
Order only
EAN: 4099986624801
MPN: 2924360000
Package: 1
Price (excl. VAT)
906,31 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | Copper data cable, System cable, T1-B, Number of wires: 2, PUR |
| Brand | Weidmüller |
| Categories |
Ethernet cable (network)
|
| Country of origin* | CH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8544 4290 00 |
| ETIM | EC003249 |
| Cable type | S/FTP |
| Conductor material | Copper |
| Screen over stranding element | Braiding |
| Material outer sheath | Polyurethane (PUR) |
| Number of cores | 2 |
| Outer diameter approx. | 4.3 mm |
Packing details
| Packing level 1 | 4099986624801, 4099986624801 |
Other Technical data
| Material core insulation | Polyurethane (PUR) |
| Weight | 10786.5 kg/km |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Stranding element | Pairs |
| Colour outer sheath | Black |
| Diameter conductor | 4.3 mm |
| Screen over stranding | Other |
| Armouring/reinforcement | None |
| Permitted cable outer temperature after assembling without vibration | -20-60 °C |
| Protective sheath | Polyurethane (PUR) |
| Suitable for underground installation | No |
| Halogen free according to IEC 60754-2 | No |
| Cable width approx. | 4.3 |
| Cable height approx. | 4.3 |
| With rodent protection | No |
| NVP value | 78 % |
| Halogen free according to EN 60754-1/2 | Yes |
| Reaction-to-fire according to EN 13501-6: Class | None |
| Reaction-to-fire according to EN 13501-6: Smoke production | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | None |
| Reaction-to-fire according to EN 13501-6: Acidity | None |
| AWG size | 26 |
| Specification core insulation | Polyethylene (PE) |
| Specification material outer sheath | Other |
| Material reinforcement | Copper |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | No |
| Flame retardant according to IEC 60332-3-25 (Cat D) | No |
| Halogen free according to IEC 60754-1 | Yes |
| Halogen free according to IEC 60754-3 | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
Description
Data line with copper wire.
