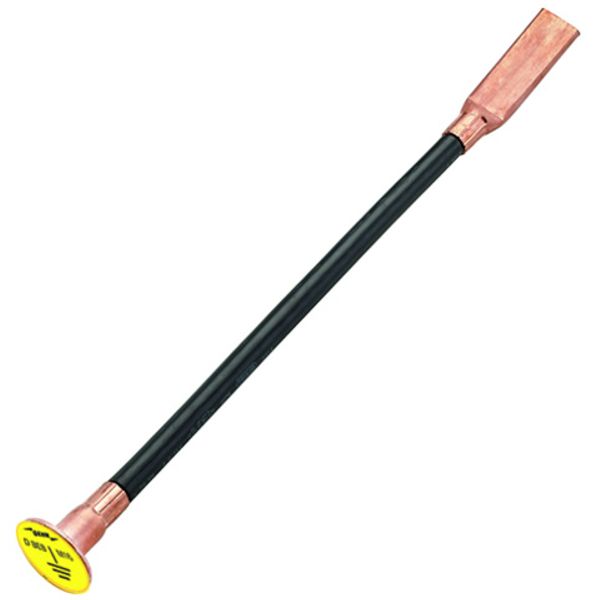

Copper cable earthing bridge NYY-O, conn. plate M16, lug 80X30mm L 500 image 1
Copper cable earthing bridge NYY-O, conn. plate M16, lug 80X30mm L 500 image 2
Copper cable earthing bridge NYY-O, conn. plate M16, lug 80X30mm L 500 thumbnail 1
Copper cable earthing bridge NYY-O, conn. plate M16, lug 80X30mm L 500 thumbnail 2
Dehn

Copper cable earthing bridge NYY-O, conn. plate M16, lug 80X30mm L 500

Order only
Price (excl. VAT):
43,95 €
This price is valid until 24.12.25
EAN: 4013364439504
MPN: 419050
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Copper cable earthing bridge NYY-O, conn. plate M16, lug 80X30mm L 500
Brand Dehn
Categories Earthing Products
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 9010 00
Material Stainless steel V2A
Connecting shaft 500 mm
Diameter connection plate 50 mm
Material connection lug Other

Packing details

Packing level 1 4013364439504, 4013364439504

Downloads

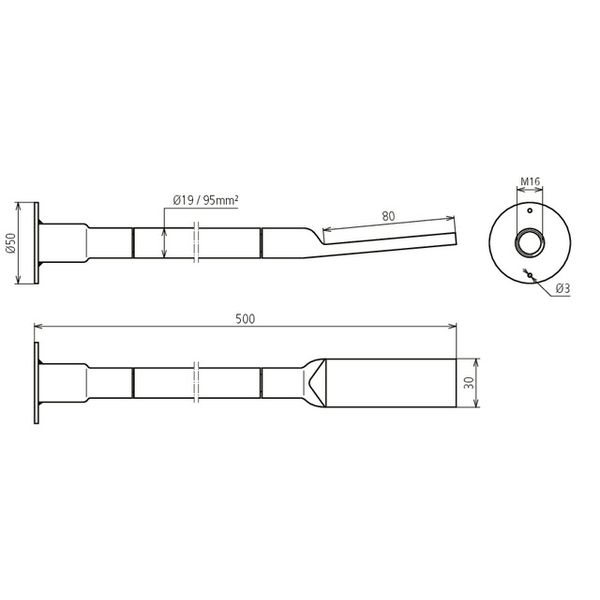

Product data sheet Dimensioned drawing

Description

Copper cable earthing bridge according to the guideline of DB Netz AG Ril 997.0205A01, for earthing, current return circuits and equipotential bonding in railway line applications. Consisting of a connection plate made of stainless steel with M16 thread and pressed on copper-plated steel lug. Designed for short-circuit currents > 25 kA.
