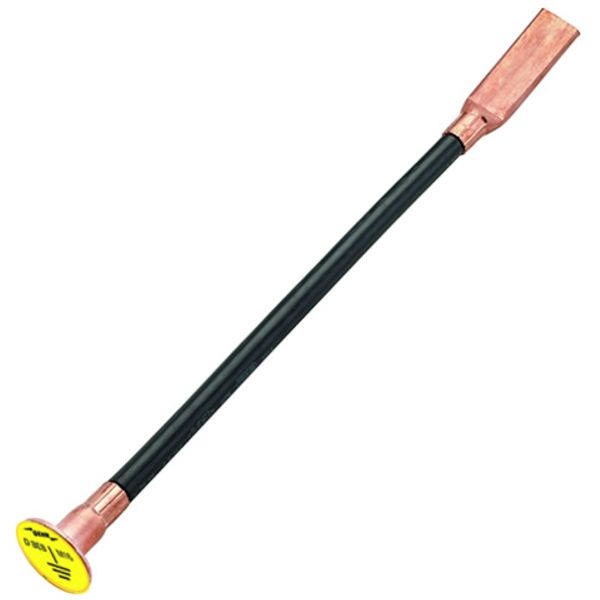

Copper cable earthing bridge H07V-K w. conn. plate M16 and lug 80X30mm

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

82,80 €

This price is valid until 31.12.25

EAN: 4013364439511

MPN: 419051

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Copper cable earthing bridge H07V-K w. conn. plate M16 and lug 80X30mm
Brand	Dehn
Categories	Earthing Products
Country of origin	DE
Harmonized System Code	8536 9010 00
Material	Stainless steel V2A
Connecting shaft	500 mm
Diameter connection plate	50 mm
Material connection lug	Other

Packing details

Packing level 1

4013364439511, 4013364439511

Downloads

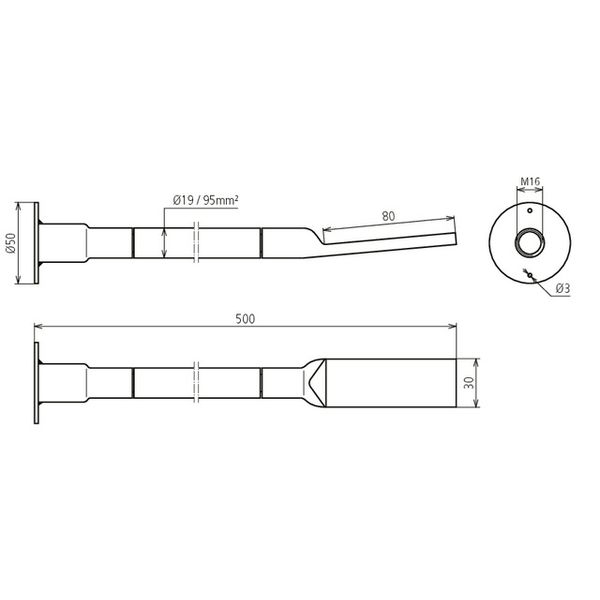

Product data sheet Dimensioned drawing

Description

Copper cable earthing bridge according to the guideline of DB Netz AG Ril 997.0205A01, for earthing, current return circuits and equipotential bonding in railway line applications. Consisting of a connection plate made of stainless steel with M16 thread and pressed on copper-plated steel lug. The flexibility of the cable makes installation in the reinforcement easier for the user. Designed for short-circuit currents > 25 kA.
