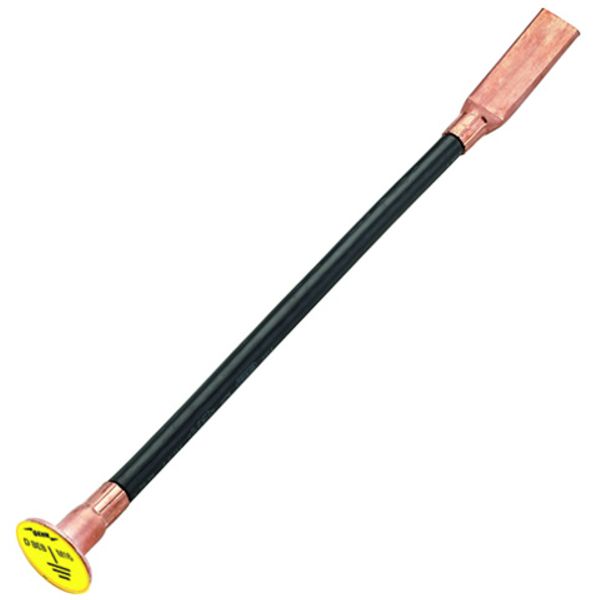

Copper cable earthing bridge H07V-K, conn. plate M16, lug 80X30mm L 50 image 1
Copper cable earthing bridge H07V-K, conn. plate M16, lug 80X30mm L 50 image 2
Copper cable earthing bridge H07V-K, conn. plate M16, lug 80X30mm L 50 thumbnail 1
Copper cable earthing bridge H07V-K, conn. plate M16, lug 80X30mm L 50 thumbnail 2
Dehn

Copper cable earthing bridge H07V-K, conn. plate M16, lug 80X30mm L 50

Order only
Price (excl. VAT):
48,83 €
This price is valid until 24.12.25
EAN: 4013364439498
MPN: 419041
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Copper cable earthing bridge H07V-K, conn. plate M16, lug 80X30mm L 50
Brand Dehn
Categories Earthing Products
Country of origin DE
Harmonized System Code 8536 9010 00
Material Stainless steel V2A
Connecting shaft 500 mm
Diameter connection plate 50 mm
Material connection lug Other

Packing details

Packing level 1 4013364439498, 4013364439498

Downloads

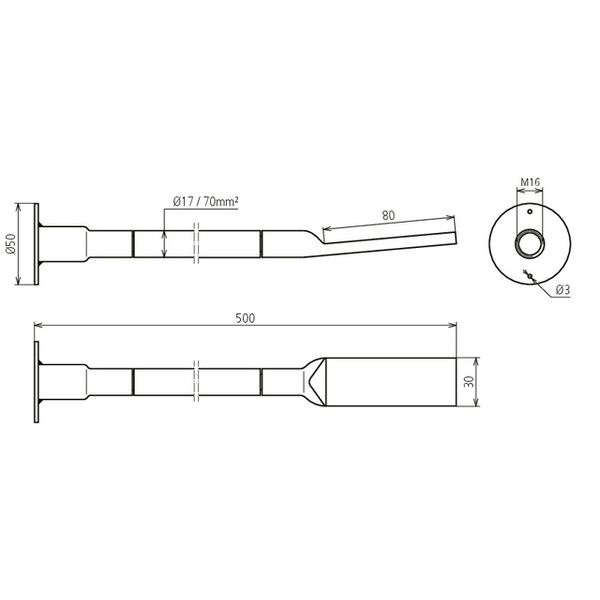

Product data sheet Dimensioned drawing

Description

Copper cable earthing bridge according to the guideline of DB Netz AG Ril 997.0205A01, for earthing, current return circuits and equipotential bonding in railway line applications. Consisting of a connection plate made of stainless steel with M16 thread and pressed on copper-plated steel lug. The flexibility of the cable makes installation in the reinforcement easier for the user. Designed for short-circuit currents ≤ 25 kA.
