Coord. lightn. current arrester Type 1 DEHNsecure M for d.c. circuits

Name: Coord. lightn. current arrester Type 1 DEHNsecure M for d.c. circuits
Brand: Dehn
Price: 312.210 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

312,21 €

This price is valid until 24.12.25

EAN: 4013364144477

MPN: 971122

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Coord. lightn. current arrester Type 1 DEHNsecure M for d.c. circuits
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 3090 00
Mounting method	DIN rail (top hat rail) 35 mm
Lightning impulse current (10/350 µs)	25 kA
Voltage protection level	2.5 kV
Max. continuous voltage AC	255 V
Category type 1	Yes
Max. continuous voltage DC	242 V
Degree of protection (IP)	IP20

Packing details

Packing level 1

4013364144477, 4013364144477

Other Technical data

Number of conductors (without earthing)	1
Construction size	2 modular spacing
Signalling at the device	Optic
Max. conductor cross section solid (solid, stranded)	50 mm²
Max. conductor cross section flexible (fine-strand)	35 mm²
Specific energy (W/R)	156.25 kJ/Ohm
System configuration DC	Yes

Downloads

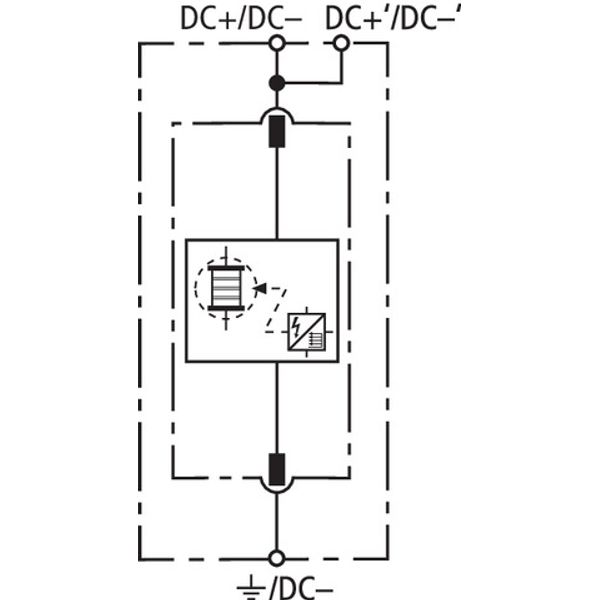

Product data sheet Dimensioned drawing Circuit diagram Deep link REACH

Description

Coordinated and modular single-pole spark-gap-based DEHNsecure lightning current arrester (classification type 1 according to EN 61643-11). Spark gap technology particularly suited for use in d.c. circuits. For protecting low-voltage consumer´s installations against surges and even direct lightning strikes. For installation in conformity with the lightning protection zone concept at the boundaries from 0A – 1.
