Coord. lightn. current arrester Type 1 DEHNsecure M for d.c. circuits

Name: Coord. lightn. current arrester Type 1 DEHNsecure M for d.c. circuits
Brand: Dehn
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1 Not Available

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Coord. lightn. current arrester Type 1 DEHNsecure M for d.c. circuits
Brand	Dehn
Country of origin	DE
Harmonized System Code	8536 3090 00
Mounting method	DIN rail (top hat rail) 35 mm
Lightning impulse current (10/350 µs)	25 kA
Number of conductors (without earthing)	1
Construction size	2 modular spacing
Voltage protection level	1.5 kV
Category type 1	Yes
Signalling at the device	Optic
Max. continuous voltage DC	60 V
Degree of protection (IP)	IP20
Max. conductor cross section solid (solid, stranded)	50 mm²
Max. conductor cross section flexible (fine-strand)	35 mm²
Specific energy (W/R)	156.25 kJ/Ohm
System configuration DC	Yes

Packing details

Packing level 1

4013364138582, 4013364138582

Downloads

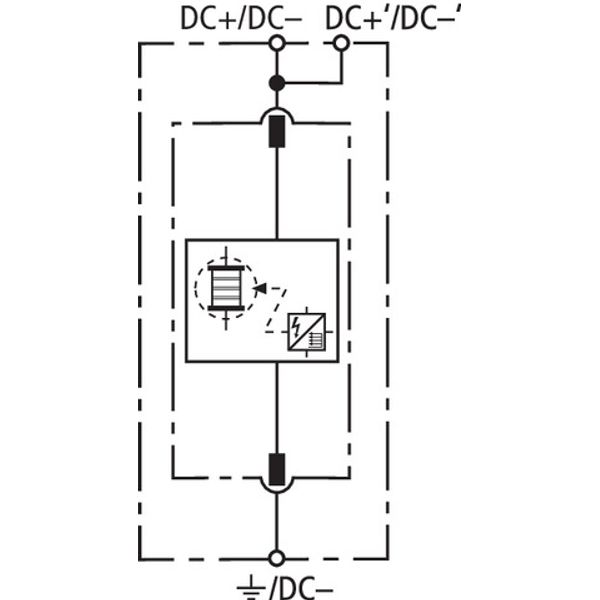

Product data sheet Dimensioned drawing Circuit diagram Deep link REACH

Description

Coordinated and modular single-pole spark-gap-based DEHNsecure lightning current arrester (classification type 1 according to EN 61643-11). Spark gap technology particularly suited for use in d.c. circuits. For protecting low-voltage consumer´s installations against surges and even direct lightning strikes. For installation in conformity with the lightning protection zone concept at the boundaries from 0A – 1.
