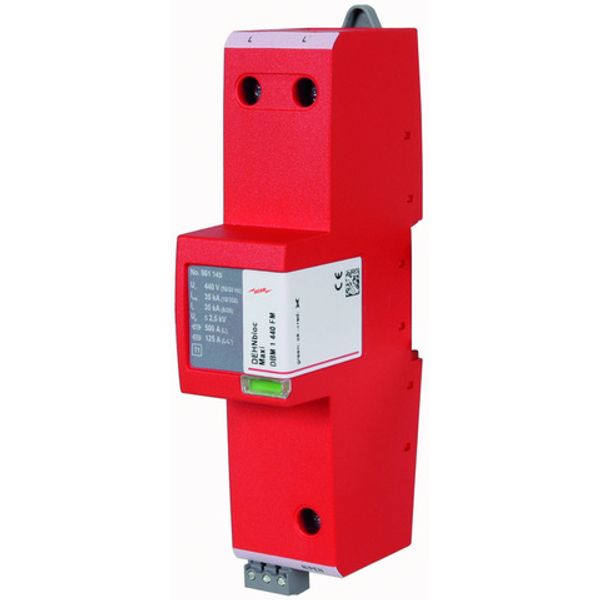

Coord. lightn. current arrester Type 1 DEHNbloc Maxi 440 V AC

Name: Coord. lightn. current arrester Type 1 DEHNbloc Maxi 440 V AC
Brand: Dehn
Price: 432.640 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

432,64 €

This price is valid until 24.12.25

EAN: 4013364116276

MPN: 961145

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Coord. lightn. current arrester Type 1 DEHNbloc Maxi 440 V AC
Brand	Dehn
Categories	Surge Protection Devices (SPD)
Country of origin	DE
Harmonized System Code	8536 3090 00
Mounting method	DIN rail (top hat rail) 35 mm
Lightning impulse current (10/350 µs)	35 kA
Voltage protection level	2.5 kV
Follow current extinguishing capability	50 kA
Max. continuous voltage AC	440 V
Nominal discharge surge current (8/20)	35 kA
Nominal voltage AC	400 V
Category type 1	Yes
Degree of protection (IP)	IP20

Packing details

Packing level 1

4013364116276, 4013364116276

Other Technical data

With remote signalling contact	Yes
Number of conductors (without earthing)	1
Construction size	2 modular spacing
Signalling at the device	Optic
Max. conductor cross section solid (solid, stranded)	50 mm²
Max. conductor cross section flexible (fine-strand)	35 mm²
Specific energy (W/R)	306.25 kJ/Ohm
System configuration IT	Yes
System configuration TN	Yes
System configuration TN-C	Yes
System configuration TN-S	Yes
System configuration TT	Yes
System configuration TN-C-S	Yes

Downloads

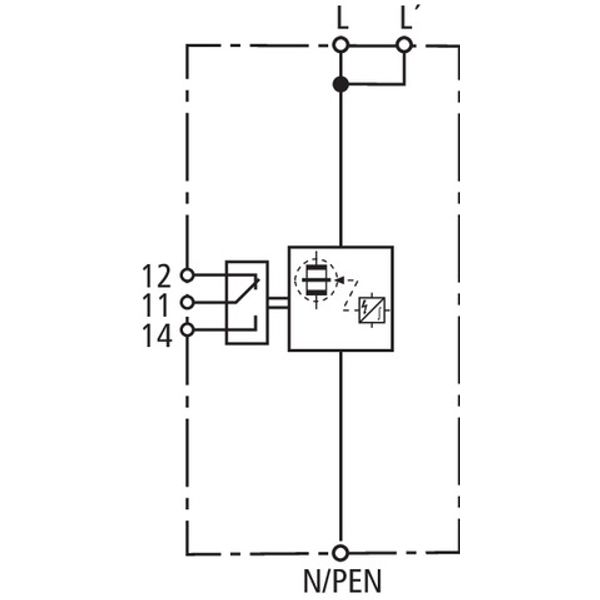

Product data sheet Dimensioned drawing Circuit diagram Deep link REACH

Description

Coordinated single-pole DEHNbloc Maxi lightning current arrester (type 1 according to EN 61643-11). High follow current extinction and limitation due to RADAX Flow technology. For protecting low voltage consumer’s installations against surges and even direct lightning strikes. For installation in conformity with the lightning protection zone concept at the boundaries from 0A – 1.
