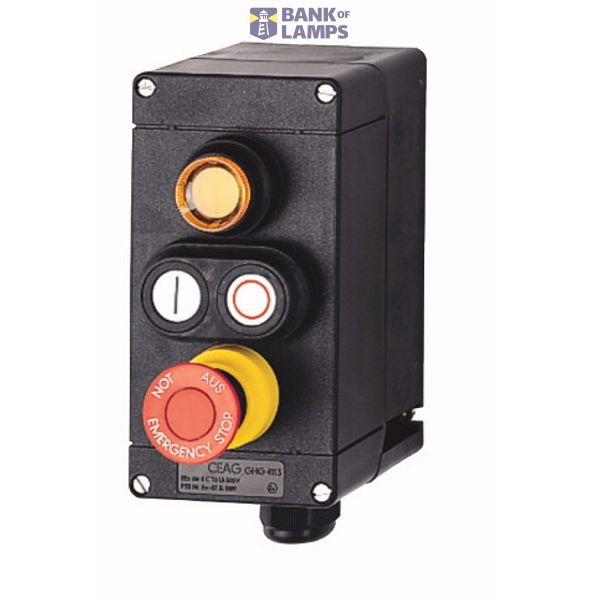

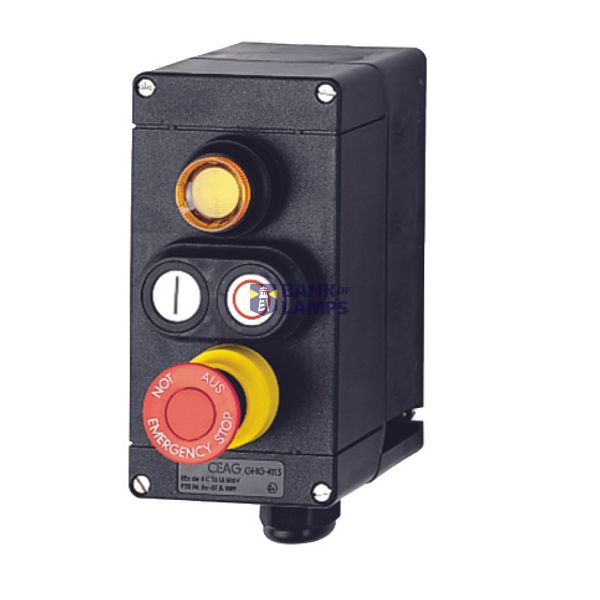

CONTROL UNIT P 413/55-12-../45-..-../71-
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | CONTROL UNIT P 413/55-12-../45-..-../71- |
| Brand | EATON |
| ETIM | EC000225 |
| Number of command positions | 3 |
| Suitable for emergency stop | Yes |
| Number of indicator lights | 1 |
| Number of push buttons | 2 |
| Number of selector switches | 0 |
| Number of key switches | 0 |
| Number of mushroom-shaped push-buttons | 1 |
Packing details
| Packing level 1 | 4250959931559 |
Other Technical data
| Colour housing cover | Black |
| Housing material | Plastic |
| Rated control supply voltage at AC 50 Hz | 20-250 V |
| Rated control supply voltage at AC 60 Hz | 20-250 V |
| Rated control supply voltage at DC | 20-110 V |
| Degree of protection (IP) | IP66 |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | Other |
Description
CONTROL UNIT P 413PUSHB.\EM.-STOP\LAMPFRONT ACTUATOR:ARRET D`URGENCE MUSHROOM HEAD PUSHBUTTON INCLDOUBLE PUSHBUTTON 1NO + 1NC INCL.LABELS z0,I,MARCHE,ARRETzSIGNAL LAMP 230VAC INCL. LENS COVER WHITE,RED,GREEN,YELLOW1 X M25 BOTTOM
