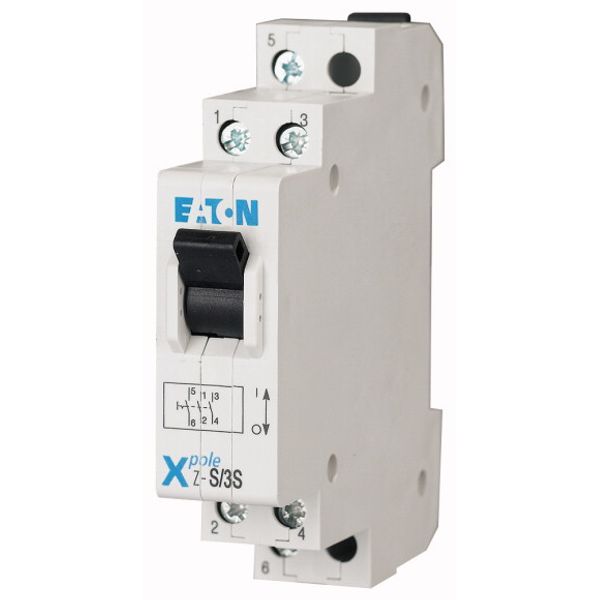

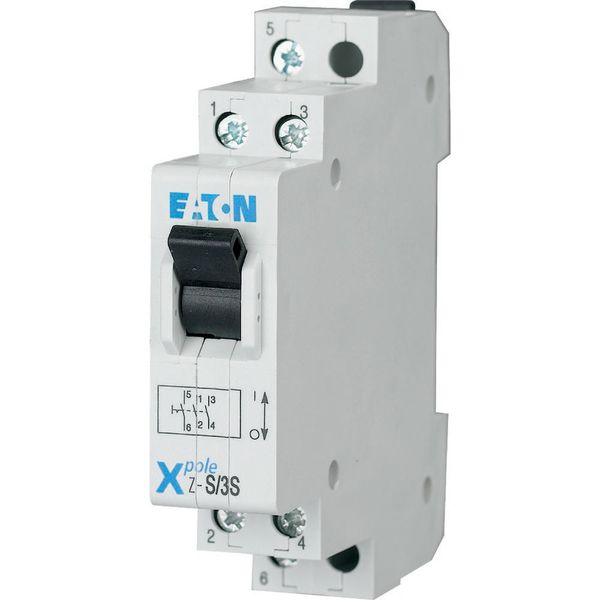

Z-S/3S1O Control switchp13 S, 1 N/C, 16A, 230 V, 20kA
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
8,26 €
EAN: 4015082483388
MPN: 248338
Package: 1
Box: 12
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Z-S/3S1O Control switchp13 S, 1 N/C, 16A, 230 V, 20kA |
| Brand | EATON |
| Categories |
Main Switches
|
| Country of origin | CZ |
| Harmonized System Code | 8536 5080 00 |
| Voltage type | AC |
| Switching function | Control switch |
| Rated current | 20 A |
| Rated voltage | 240 V |
| Number of poles | 4 |
| Degree of protection (IP) | IP40 |
Packing details
| Packing level 1 | 4015082483388 |
| Packing level 2 | 9007912227496 |
| Packing level 3 | 9007912227502 |
Other Technical data
| With signal lamp | No |
| Built-in depth | 80 mm |
| Max. lamp power | 0 W |
| Lamp type | Other |
| Short-circuit breaking capacity (Icw) | 10 kA |
| Rated switching capacity | 0.025 kA |
| Width in number of modular spacings | 1 |
| Imprint/indication | Other |
| Colour calotte | Other |
| Lamp socket | Other |
| Min. rated voltage | 0 V |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 3 |
| Number of contacts as change-over contact | 0 |
| Forced segregation according to DIN VDE 0113 | No |
Description
Control switch, function: 3 N/O and 1 N/C, rated operational current 16A, rated operating voltage 230/400V AC, short-circuit strength 10kA, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting, terminal cross-section 1-10 mm², type conform to IEC 60669, VDE 0632
