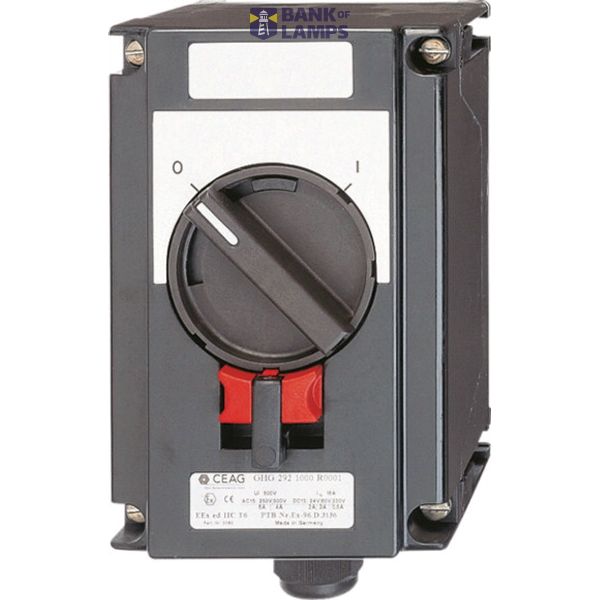

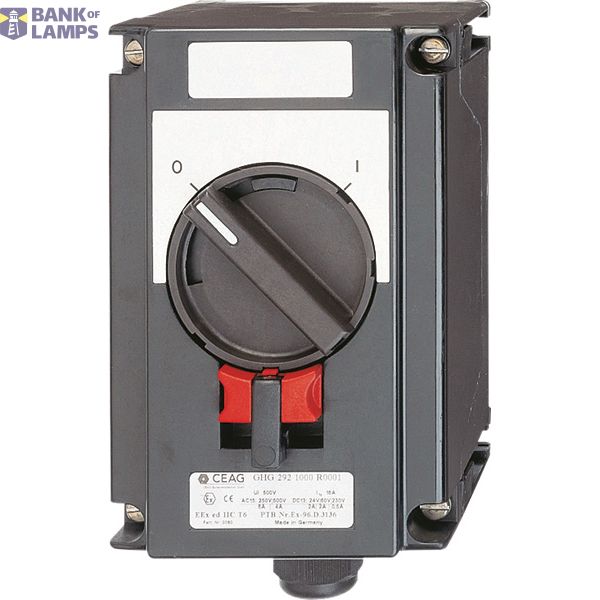

CONTROL SWITCH EX29 (4067) 1SJ25Y
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | CONTROL SWITCH EX29 (4067) 1SJ25Y |
| Brand | EATON |
| ETIM | EC002611 |
| Number of switch positions | 2 |
| Rated permanent current Iu | 20 A |
| Number of poles | 2 |
| With zero (off) position | Yes |
| With retraction in 0-position | No |
| Type of switch | On/Off switch |
| Max. rated operation voltage Ue AC | 400 V |
Packing details
| Packing level 1 | 4250217424724 |
Other Technical data
| Width in number of modular spacings | 0 |
| Degree of protection (IP), front side | IP66 |
| Type of control element | Turn button |
| Front shield size | Other |
| Suitable for floor mounting | No |
| Suitable for front mounting | Yes |
| Suitable for distribution board installation | No |
| Suitable for intermediate mounting | No |
| Complete device in housing | Yes |
| Device construction | Surface mounted device |
| Degree of protection (NEMA), front side | Other |
Description
Ex-Control Switch 16 A, w/o measuring instrument for Zone 1/21, GHG 292Switch base 4067, 1 x M25 direct drilled enclosure, gland(s): 1 x M25 polyamide
