EATON

CONTROL SWITCH 6062 AM72 0-100% 1M32

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name CONTROL SWITCH 6062 AM72 0-100% 1M32
Brand EATON
ETIM EC002611
Number of switch positions 3
Rated permanent current Iu 16 A
Number of poles 3
With zero (off) position Yes
With retraction in 0-position No
Type of switch On/Off switch
Max. rated operation voltage Ue AC 500 V

Packing details

Packing level 1 4250217410222

Other Technical data

Width in number of modular spacings 0
Degree of protection (IP), front side IP66
Type of control element Turn button
Front shield size Other
Suitable for floor mounting No
Suitable for front mounting Yes
Suitable for distribution board installation No
Suitable for intermediate mounting No
Complete device in housing Yes
Device construction Surface mounted device
Degree of protection (NEMA), front side Other

Description

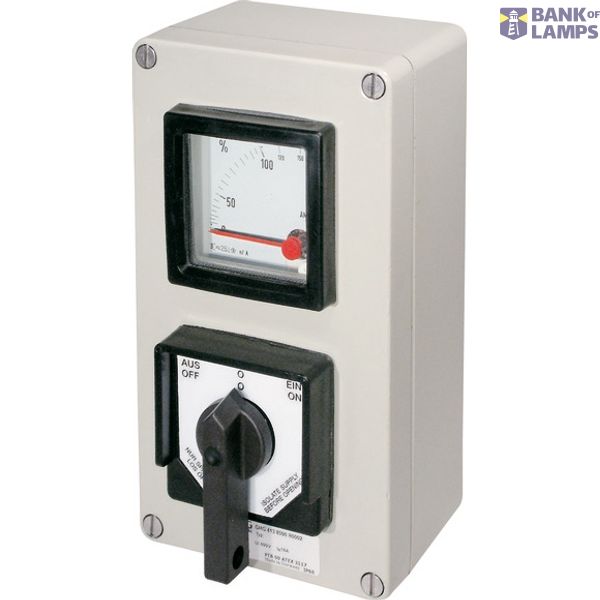

Ex-Control Switch 16 A, with measuring instrument for Zone 1/21, GHG 295Switch base 6062, 1 x M32 direct drilled enclosure, gland(s): 1 x M32 polyamide
