Control Panel for UMC22-FBP

Order only

Price (excl. VAT):

527,36 € per pcs

This price is valid until 31.12.30

EAN: 4013614395277

MPN: 1SAJ510001R0002

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Control Panel for UMC22-FBP
Brand	ABB
Categories	Other Products

Packing details

Packing level 1

4013614395277

Description

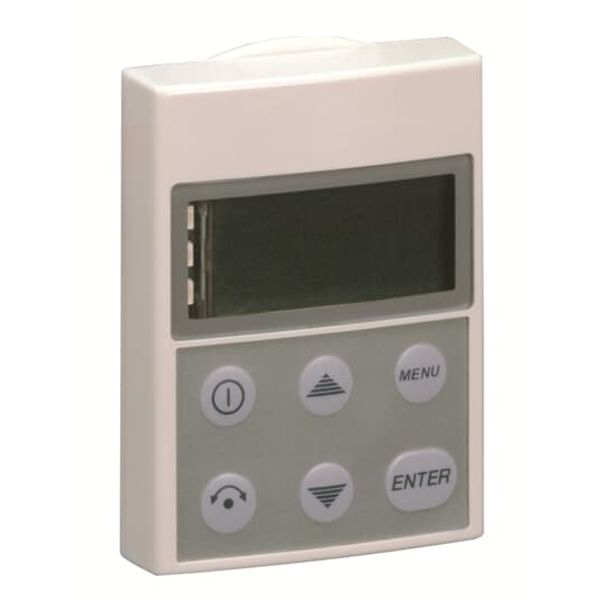

The UMC22-PAN is a control panel specifically engineered for use with the UMC22-FBP Universal Motor Controller. With dimensions of 49 mm in width, 15 mm in depth, and 66 mm in height, this unit provides compact design suitable for single mounting setups. It features IP20 and IP54 ratings to address varying degrees of environmental protection and supports secure integration into industrial systems.

Designed to minimize power loss during operation, the unit exhibits an approximate energy dissipation rate of 0.3 W. The robust construction includes compliance with material regulations such as WEEE B2B Category 5 (Small Equipment) classification and satisfies conflict materials reporting standards using the CMRT template. Its design ensures a streamlined setup adhering to ETIM classifications EC002614—making it compatible as an operator interface for motor management devices.

Additional technical integrations include compatibility data provided through EPLAN EDZ format, facilitating workflow efficiency during electrical planning phases. Ideal for applications across industrial automation sectors or motor-driven systems requiring precise monitoring and control interfaces tailored to ABB’s UMC platform architecture.

Shipping specifications outline a single-unit carton packaging measuring 84 mm x 23 mm x 63 mm with a gross weight of approximately 47 g—a detail relevant for logistics planning in distribution networks handling components at scale within standardized trade tariffs under HS code: 85389099.
