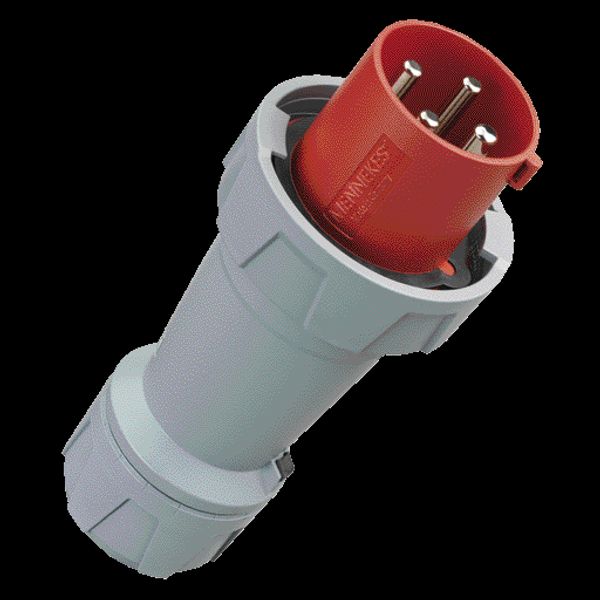

Plug PowerTOPplus, 125A4p6h400V, IP67
Order only
Price (excl. VAT):
90,55 €
EAN: 4015394248866
MPN: 3374
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Plug PowerTOPplus, 125A4p6h400V, IP67 |
| Brand | Mennekes |
| Categories |
CEE Plugs
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| Number of poles | 4 |
| IEC-amperage | 125 A |
| Connection system | Screwed terminal |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 4015394248866 |
Other Technical data
| RAL-number | 3013 |
| Cable entry | Gland nut |
| Material | Plastic |
| Amperage according to UL/CSA (for UL-version) | 100 A |
| Angle of plug | Straight |
| Phase inverter | No |
| Military model | No |
| Clock hour position | 6 h |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
Downloads
Description
125A4P 6H400V plug PowerTOP Plus IP 67 with high heat resistant contact carrier and nickel plated contact cable gland with integrated strain relief and sealing housing with threat closing and push locking
