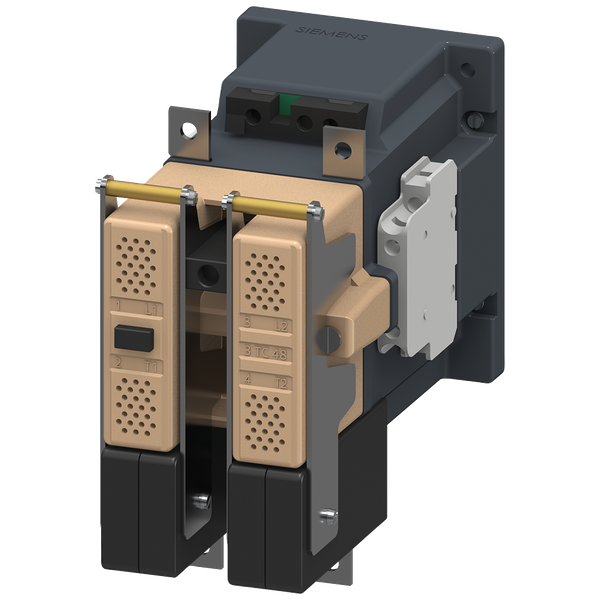

Contactor, Size 4, 2-pole, DC-3 and 5, 75 A Auxiliary switch 22 (2 NO +

Order only

Price (excl. VAT):

471,12 € per pcs

This price is valid until 31.12.25

EAN: 4011209115705

MPN: 3TC4817-0AW4

Box: 1

Estimate delivery time at our warehouse (approx.): 22d

Technical Information

Item condition	New
Manufacture name	Contactor, Size 4, 2-pole, DC-3 and 5, 75 A Auxiliary switch 22 (2 NO +
Brand	Siemens
Categories	DC Power Contactors
Country of origin	DE
Harmonized System Code	8536 4900 00
Rated operation power at DC-3 / DC-5 at 440 V	27 kW
Rated operation current Ie at DC-3 / DC-5 at 440 V	0 A
Voltage type for actuating	DC

Packing details

Packing level 1

4011209115705

Other Technical data

Modular version	Yes
Number of normally open contacts as main contact	2
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	2
Number of auxiliary contacts as normally closed contact	2
Type of electrical connection of main circuit	Screw connection

Description

Contactor, Size 4, 2-pole, DC-3 and 5, 75 A Auxiliary switch 22 (2 NO + 2 NC) 48V DC DC operation Contactor 3TC for switching DC voltage, 2-pole. The 3TC DC contactors offer convincing performance from a compact design with high contact reliability. They are also characterized by their particularly long switching endurance. The devices are approved for worldwide use (e.g. IEC and UL/CSA). They are available with AC and DC operation, in various voltages and with different auxiliary contacts. Arc chambers, solenoid coils and surge suppressors, for example, are available as accessories.
