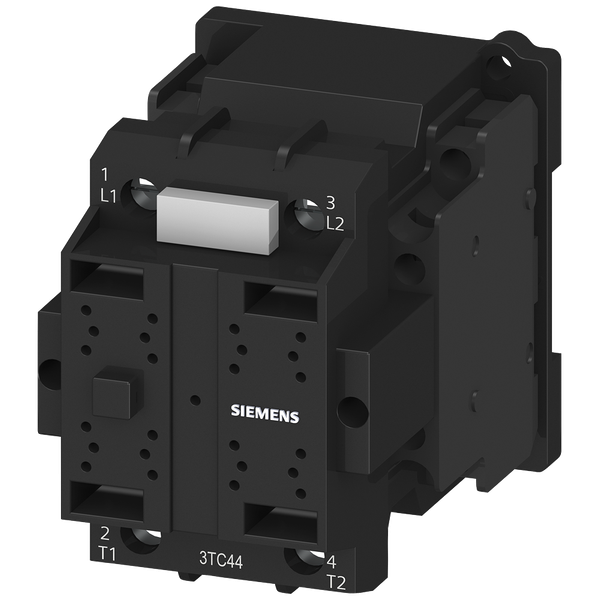

Contactor, Size 2, 2-pole, DC-3 and 5, 32 A Auxiliary contacts 22 (2 NO +

Order only

Price (excl. VAT):

95,31 € per pcs

This price is valid until 31.12.25

EAN: 4011209086562

MPN: 3TC4417-0BK1

Box: 1

Estimate delivery time at our warehouse (approx.): 22d

Technical Information

Item condition	New
Manufacture name	Contactor, Size 2, 2-pole, DC-3 and 5, 32 A Auxiliary contacts 22 (2 NO +
Brand	Siemens
Categories	DC Power Contactors
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 4900 00
Rated operation power at DC-3 / DC-5 at 440 V	9 kW
Rated operation current Ie at DC-3 / DC-5 at 440 V	0 A
Voltage type for actuating	DC

Packing details

Packing level 1

4011209086562

Other Technical data

Modular version	Yes
Number of normally open contacts as main contact	2
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	2
Number of auxiliary contacts as normally closed contact	2
Type of electrical connection of main circuit	Screw connection

Description

Contactor, Size 2, 2-pole, DC-3 and 5, 32 A Auxiliary contacts 22 (2 NO + 2 NC) 120 V AC 60 Hz/100 V AC 50 Hz AC operation Contactor 3TC for switching DC voltage, 2-pole. The 3TC DC contactors offer convincing performance from a compact design with high contact reliability. They are also characterized by their particularly long switching endurance. The devices are approved for worldwide use (e.g. IEC and UL/CSA). They are available with AC and DC operation, in various voltages and with different auxiliary contacts. Arc chambers, solenoid coils and surge suppressors, for example, are available as accessories.
