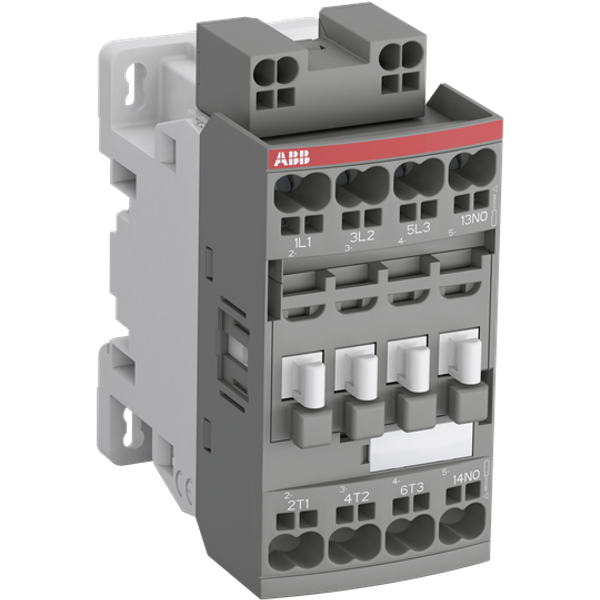

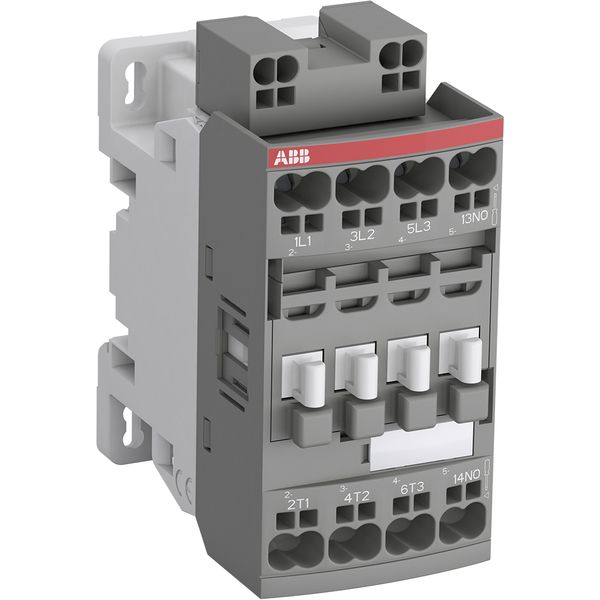

AF16Z-30-01K-20 12-20VDC Contactor
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
79,31 €
per pcs
EAN: 3471523156203
MPN: 1SBL176005R2001
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | AF16Z-30-01K-20 12-20VDC Contactor |
| Brand | ABB |
| Categories |
AC Power Contactors
|
| Harmonized System Code | 8536 4900 00 |
| Rated operation power at AC-3, 400 V | 7.5 kW |
| Number of normally open contacts as main contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Rated operation current Ie at AC-3, 400 V | 18 A |
| Rated control supply voltage at AC 50 Hz | 100-250 V |
| Rated control supply voltage at AC 60 Hz | 100-250 V |
| Rated control supply voltage at DC | 12-20 V |
| Type of electrical connection of main circuit | Spring clamp connection |
| Voltage type for actuating | AC/DC |
Packing details
| Packing level 1 | 3471523156203 |
| Packing level 2 | 3471523156203 |
Other Technical data
| Modular version | No |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated operation current Ie at AC-1, 400 V | 30 A |
