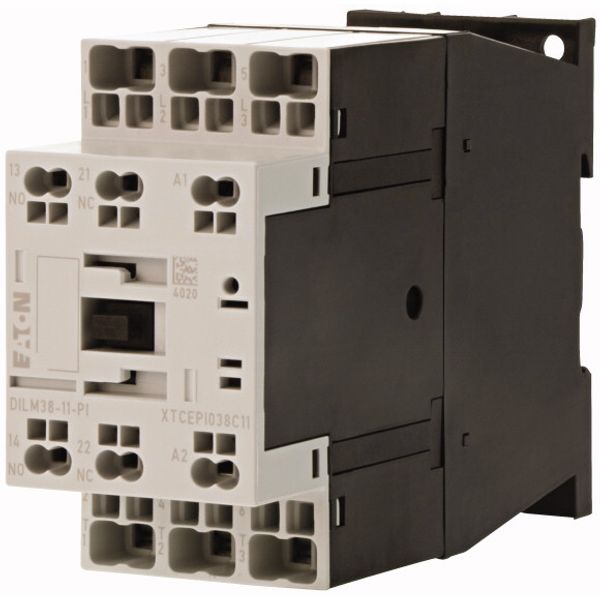

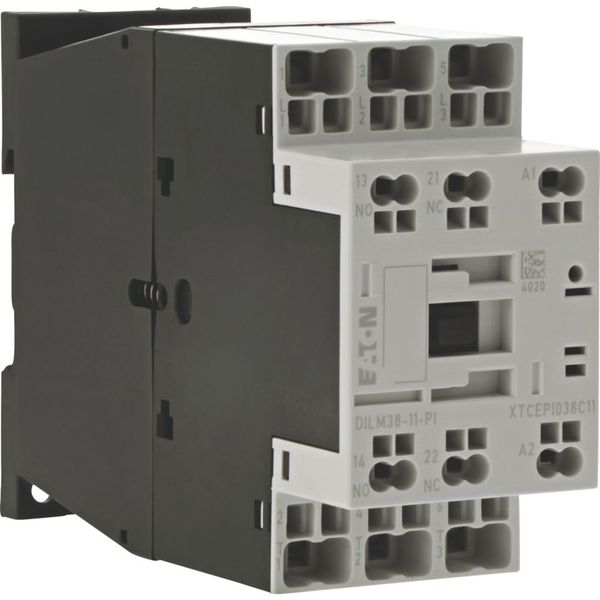

DILM38-11(230V50HZ,240V60HZ)-PI Contactor, 3 pole, 380 V 400 V 18.5 kW, 1 N/O, 1 NC, 230 V 50 Hz, 240 V 60 Hz, AC operation, Push in terminals
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
54,73 €
EAN: 4015081973781
MPN: 199294
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | DILM38-11(230V50HZ,240V60HZ)-PI Contactor, 3 pole, 380 V 400 V 18.5 kW, 1 N/O, 1 NC, 230 V 50 Hz, 240 V 60 Hz, AC operation, Push in terminals |
| Brand | EATON |
| Categories |
AC Power Contactors
|
| Country of origin | RO |
| Harmonized System Code | 8536 4900 00 |
| Rated operation power at AC-3, 400 V | 18.5 kW |
| Number of normally open contacts as main contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Rated operation current Ie at AC-3, 400 V | 38 A |
| Rated control supply voltage at AC 50 Hz | 230 V |
| Rated control supply voltage at AC 60 Hz | 240 V |
| Rated control supply voltage at DC | 0 V |
| Type of electrical connection of main circuit | Spring clamp connection |
| Voltage type for actuating | AC |
Packing details
| Packing level 1 | 4015081973781 |
Other Technical data
| Modular version | No |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated operation current Ie at AC-1, 400 V | 45 A |
| Rated operation current Ie at AC-4, 400 V | 15 A |
| Rated operation power at AC-4, 400 V | 7 kW |
| Rated operation power NEMA | 0 kW |
Description
Contactor, Application: Contactors for Motors, Contactors up to 95 A, 3 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Push in terminals, Notes: Not suitable for motors with efficiency class IE3., Number of poles: 3 pole, Rated operational current AC-3 380 V 400 V: Ie= 38 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 45 A, enclosed: Ith= 36 A , Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 100 A, enclosed: Ith= 90 A, Max. rating for three-phase motors, 50 - 60 Hz AC-3 220 V 230 V: P= 11 kW, 380 V 400 V: P= 18.5 kW, 660 V 690 V: P= 21 kW, Max. rating for three-phase motors, 50 - 60 Hz AC-4 220 V 230 V: P= 4 kW, 380 V 400 V: P= 7 kW, 660 V 690 V: P= 10 kW, Can be combined with auxiliary contact: DILM32-XHI…-PI, DILA-XHI(V)…-PI, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, Instructions: Contacts to EN 50 012., with mirror contact., Voltage AC/DC: AC operation
