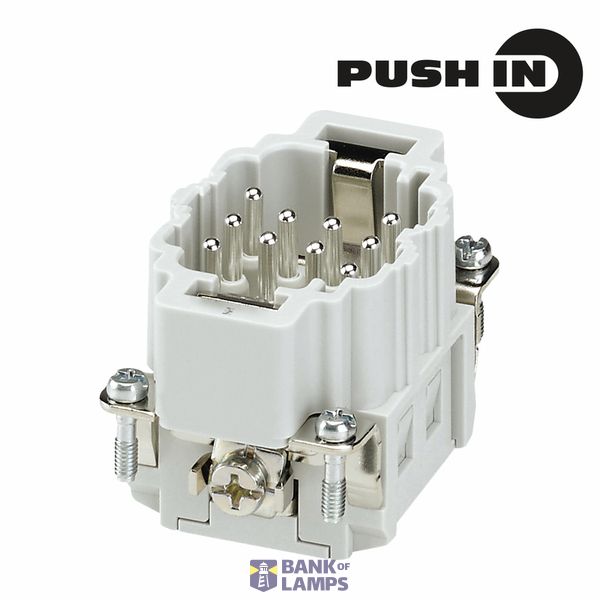

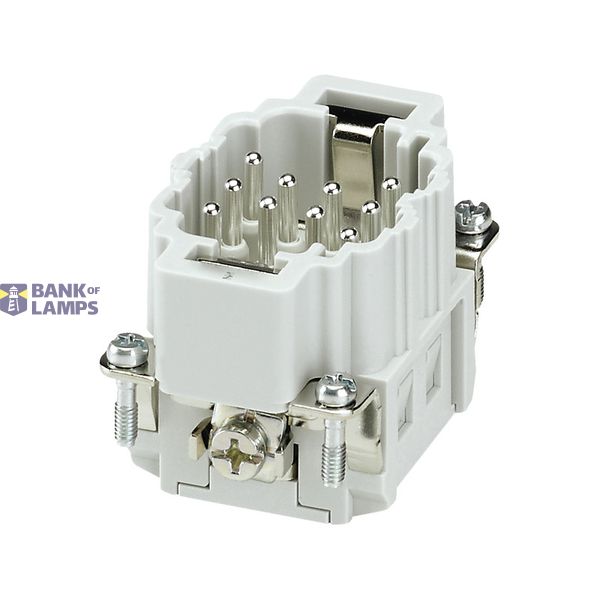

Contact insert (industry plug-in connectors), Male, 500 V, 16 A, Numbe

Order only

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 4099987279758

MPN: 3125050000

Package: 1

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Contact insert (industry plug-in connectors), Male, 500 V, 16 A, Numbe
Brand	Weidmüller
Categories	Rectangular Connectors
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC000438
Rated voltage	500 V
Type of electric connection	Push-in clamp connection
Over voltage category	III

Packing level 1

4099987279758, 4099987279758

Width	51 mm
Height	32.5 mm
Depth	34 mm
With wire protection	No
Number of poles	10
Contact type	Pin
Operating temperature	-40-125 °C
Inflammability class of insulation material according to with UL94	V0
Rated surge voltage	6 kV
Material of contact surface	Silver
Pollution degree	3
Diameter plug-in contact	2.5 mm
Contact insert without contacts	No
Connectable conductor cross section solid-core	0.5-2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.34 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5-2.5 mm²
Connectable conductor cross section multi-wired	0.5-2.5 mm²
With protective conductor	Yes
Material contact	Other copper alloys
Material connector insert	Thermoplastic
Rated current In	16 A
Material of contact insert	Thermoplastic
Number of power contacts	10
Number of control contacts	0

Insert for industrial plug-in connectors, consisting of contact element and insulating body.
