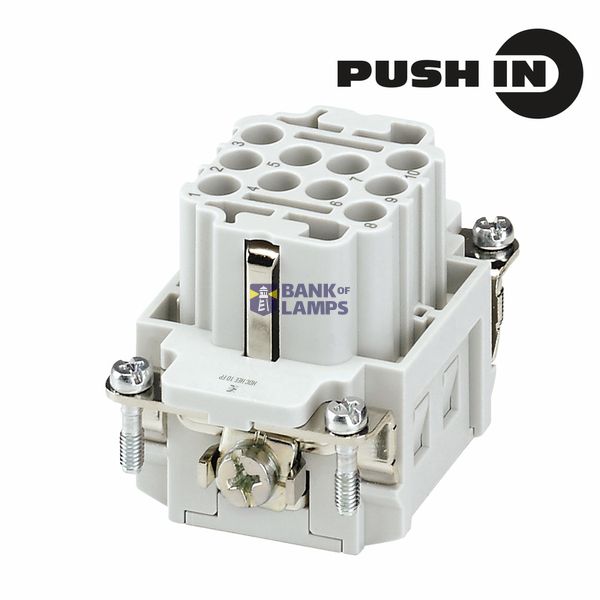

Contact insert (industry plug-in connectors), Female, 500 V, 16 A, Num

Order only

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 4099987279765

MPN: 3125060000

Package: 1

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Contact insert (industry plug-in connectors), Female, 500 V, 16 A, Num
Brand	Weidmüller
Categories	Rectangular Connectors
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC000438
Rated voltage	500 V
Type of electric connection	Push-in clamp connection
Over voltage category	III

Packing level 1

4099987279765, 4099987279765

Width	34 mm
Height	32.5 mm
With wire protection	No
Number of poles	10
Contact type	Bus
Operating temperature	-40-125 °C
Inflammability class of insulation material according to with UL94	V0
Rated surge voltage	6 kV
Pollution degree	3
Diameter plug-in contact	2.5 mm
Contact insert without contacts	No
Connectable conductor cross section multi-wired	0.5-2.5 mm²
With protective conductor	Yes
Material contact	Other copper alloys
Material connector insert	Thermoplastic
Rated current In	16 A
Material of contact insert	Thermoplastic
Number of power contacts	10
Number of control contacts	0

Insert for industrial plug-in connectors, consisting of contact element and insulating body.
