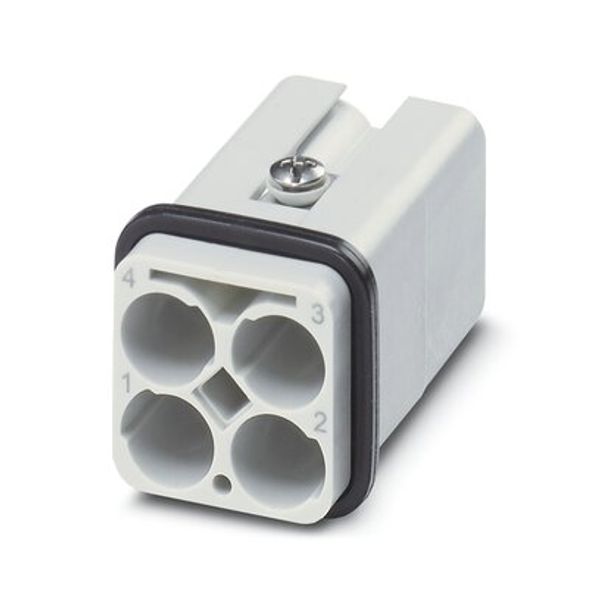

HC-Q04-I-CT-M - Contact insert
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
3,85 €
per pcs
EAN: 4055626256177
MPN: 1419898
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | HC-Q04-I-CT-M - Contact insert |
| Brand | Phoenix Contact |
| Categories |
Rectangular Connectors
|
| Country of origin | CN |
| Harmonized System Code | 8538 9099 00 |
| Rated voltage | 830 V |
| Type of electric connection | Crimp connection |
| Over voltage category | III |
Packing details
| Packing level 1 | 4055626256177, 4055626256177 |
Other Technical data
| Width | 21 mm |
| Height | 40 mm |
| Depth | 21 mm |
| With wire protection | No |
| Number of poles | 4 |
| Contact type | Pin |
| Ambient temperature | 125 °C |
| Operating temperature | -40-125 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Rated surge voltage | 8 kV |
| Material of contact surface | Other |
| Pollution degree | 3 |
| Diameter plug-in contact | 4 mm |
| Contact insert without contacts | Yes |
| Connectable conductor cross section fine-strand without cable end sleeve | 1.5-6 mm² |
| Connectable conductor cross section multi-wired | 1.5-6 mm² |
| With protective conductor | No |
| Material contact | Other copper alloys |
| Material connector insert | Thermoplastic |
| Rated current In | 40 A |
| Material of contact insert | Thermoplastic |
| Min. number of insertion cycles | 500 |
| Number of power contacts | 4 |
| Number of control contacts | 0 |
Description
Contact insert, number of positions: 4, size: D7, number of connections per position: 1, Pin, Crimp connection, 830 V, 40 A, 1.5 mm² ... 6 mm², application: Power, Only suitable for plastic housings
