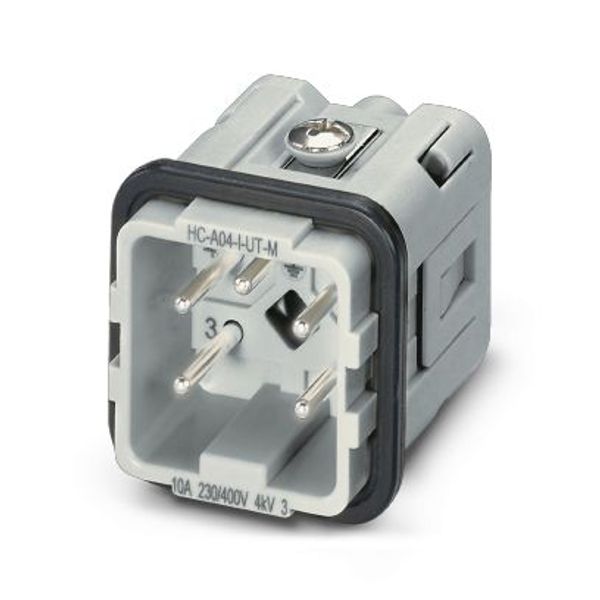

HC-A04-I-UT-M - Contact insert

Name: HC-A04-I-UT-M - Contact insert
Brand: Phoenix Contact
Price: 5.520 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

5,52 € per pcs

This price is valid until 24.12.25

EAN: 4046356284967

MPN: 1585236

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	HC-A04-I-UT-M - Contact insert
Brand	Phoenix Contact
Categories	Rectangular Connectors
Country of origin	CN
Harmonized System Code	8536 6990 00
Rated voltage	230 V
Type of electric connection	Screw connection
Over voltage category	III

Packing details

Packing level 1

4046356284967, 4046356284967

Other Technical data

Width	28 mm
Height	28.5 mm
Depth	21 mm
With wire protection	No
Number of poles	4
Contact type	Pin
Ambient temperature	125 °C
Operating temperature	-40-125 °C
Inflammability class of insulation material according to with UL94	V0
Rated surge voltage	4 kV
Material of contact surface	Other
Pollution degree	3
Diameter plug-in contact	1.6 mm
Contact insert without contacts	No
Connectable conductor cross section fine-strand without cable end sleeve	0.5-2.5 mm²
Connectable conductor cross section multi-wired	0.5-2.5 mm²
With protective conductor	Yes
Material contact	Other copper alloys
Material connector insert	Thermoplastic
Rated current In	10 A
Material of contact insert	Thermoplastic
Min. number of insertion cycles	500
Number of power contacts	4
Number of control contacts	0

Description

Contact insert, number of positions: 4+PE, size: D7, number of connections per position: 1, Pin, Screw connection, 230 V/400 V, 10 A, 0.5 mm² ... 2.5 mm²
