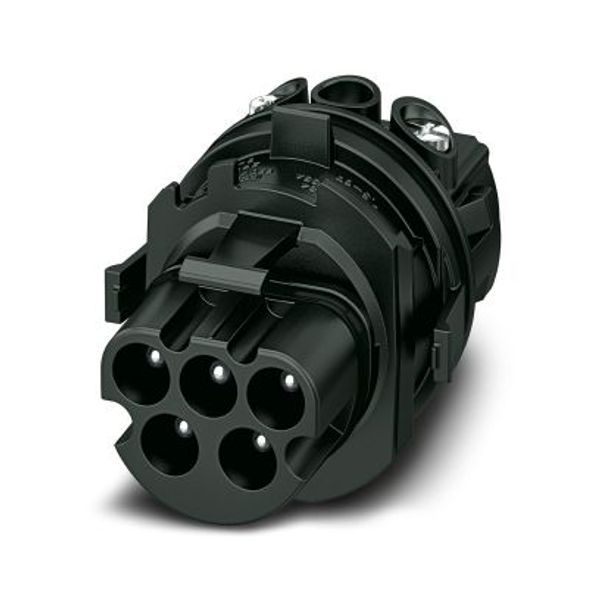

PRC 5-HEAD-MS6-2 - Contact carrier
Order only
Price (excl. VAT):
4,68 €
per pcs
EAN: 4055626748160
MPN: 1070199
Box: 1
Estimate delivery time to our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PRC 5-HEAD-MS6-2 - Contact carrier |
| Brand | Phoenix Contact |
| Categories |
Circular Connectors
|
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| Rated voltage | 0 V |
| Number of poles | 5 |
| Operating temperature | -40-105 °C |
| Degree of protection (IP), mounted | Other |
| Rated current In | 0 A |
Packing details
| Packing level 1 | 4055626748160, 4055626748160 |
Other Technical data
| Housing material | Other |
| Ambient temperature | 105 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| With shield connection | No |
| With thread | Yes |
| Material of contact surface | Other |
| With PE-connection | No |
| Connectable conductor cross section | 1.5-6 mm² |
| Min. number of insertion cycles | 2000 |
| Number of control contacts | 5 |
Description
Contact insert, Range of articles: PRC 35, Contact carrier, housing material: PPE, color: black, number of positions: 5, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², rated voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Type of contact: Pin. Contact insert without connector housing. Please order the appropriate connector housings according to the accessories list.
