CONT LV.9A 2P+2B 24V DC PRINT

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	CONT LV.9A 2P+2B 24V DC PRINT
Brand	Schneider Electric
Country of origin*	FR
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 4190 00
ETIM	EC000066
Rated operation power at AC-3, 400 V	0 kW
Number of normally open contacts as main contact	2
Number of normally closed contacts as main contact	2
Rated operation current Ie at AC-3, 400 V	0 A
Rated control supply voltage at DC	24 V
Type of electrical connection of main circuit	PCB connection
Voltage type for actuating	DC

Packing details

Packing level 1

3389110499414

Other Technical data

Modular version	No
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated operation current Ie at AC-1, 400 V	20 A
Rated operation current Ie at AC-4, 400 V	0 A
Rated operation power at AC-4, 400 V	0 kW
Rated operation power NEMA	0 kW

Description

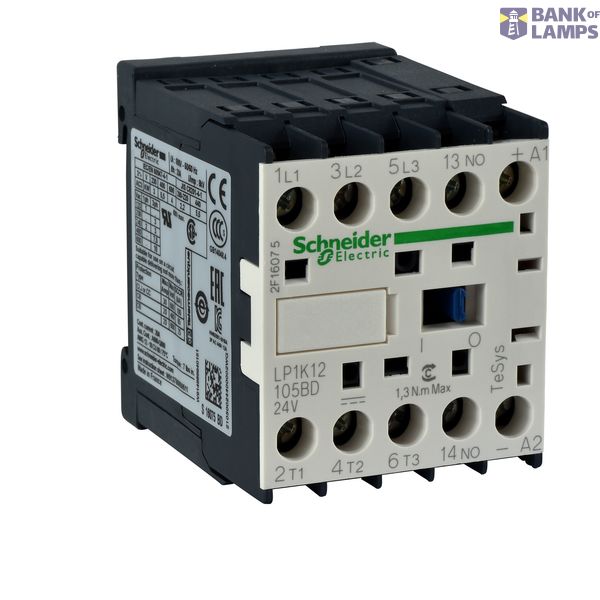

TeSys K contactor, 4 poles (2NO+2NC), for non-inductive load control applications up to 20A/690V AC-1. It provides a low consumption 24V DC coil with transient suppressor module, without built-in auxiliary contact, connection by solder pins for printed circuit boards. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
