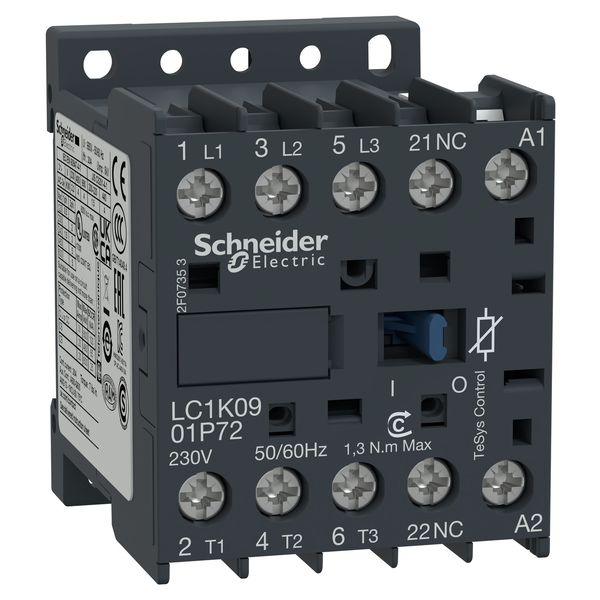

Contactor TeSys K 3P 9A 230V AC coil with suppression

Order only

Price (excl. VAT):

19,42 €

This price is valid until 24.12.25

EAN: 3389110120493

MPN: LC1K0901P72

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Contactor TeSys K 3P 9A 230V AC coil with suppression
Brand	Schneider Electric
Categories	AC Power Contactors
Country of origin	FR
Harmonized System Code	8536 4900 00
Rated operation power at AC-3, 400 V	4 kW
Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	0
Rated operation current Ie at AC-3, 400 V	9 A
Rated control supply voltage at AC 50 Hz	230 V
Rated control supply voltage at AC 60 Hz	230 V
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC

Packing details

Packing level 1

3389110120493

Other Technical data

Modular version	No
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	1
Rated operation current Ie at AC-1, 400 V	20 A
Rated operation current Ie at AC-4, 400 V	6 A
Rated operation power at AC-4, 400 V	2.2 kW
Rated operation power NEMA	0 kW

Description

TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 230V 50/60Hz AC coil with transient suppressor module, 1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
